Electromagnetic Four-Dimensional Space Vibration Platform
Electromagnetic Four-Dimensional Space Vibration Platform
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q051
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Max. Test Load :
0–60 kg
Vibration Direction :
Vertical + Horizontal + Front-Back (6-axis simultaneous, independent frequency)
Amplitude :
0–5 mm (frequency-dependent)
Max. Acceleration :
10G
Description

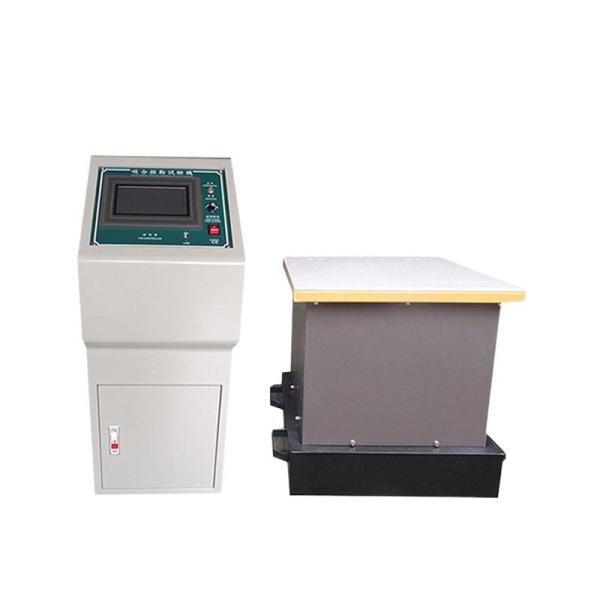

LR-Q051 Electromagnetic Four-Dimensional Space Vibration Platform

The electromagnetic vibration table is widely used in industries such as national defense, aviation, communications, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of product applications, a broad applicable scope, significant test results, and is reliable. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

Technical Parameters:

Parameter

Specification

Max. Test Load

0–60 kg

Vibration Direction

Vertical + Horizontal + Front-Back (6-axis simultaneous, independent frequency)

Table Size (Selectable)

500×500 mm / 750×750 mm / 1000×1000 mm / 1500×1500 mm

Amplitude

0–5 mm (frequency-dependent)

Frequency Sweep

1–600 Hz (bidirectional; 1–3000 Hz customizable)

Max. Acceleration

10G

Functions

FM / Programmable / Time Control

Precision

Display: 0.01Hz / Accuracy: ±0.1Hz

Program Control

1–600 Hz, 8 segments (freq/time/cycles programmable)

Octave Function

0.01Hz step:Low→High High→Low Low→High→Low (cyclable)

Logarithmic Function

0.01Hz step:Down→Up Up→Down Down→Up→Down (cyclable)

Waveform

Sine wave (Half-wave/Full-wave)

Time Control

Arbitrary seconds

Power Supply

220V 50Hz

Power

2.0 kW

Net Weight

≈220 kg (estimated)
