Double-Column Tensile Testing Machine
Double-Column Tensile Testing Machine
Double-Column Tensile Testing Machine
Double-Column Tensile Testing Machine
Double-Column Tensile Testing Machine
Double-Column Tensile Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q006
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Model :
Double-column Type
Control the Motor :
Servo Motor
Test Speed :
Adjustable from 0.1 to 500mm/min (servo type)
Resolution :
1/250000
Power Unit :
Kg, Lb, N switching function
Test Itinerary :
800 mm
Effective Test Width :
400mm
Description

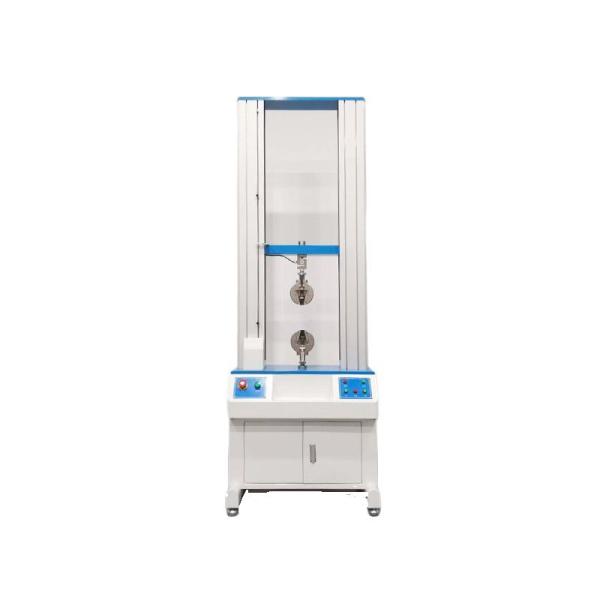

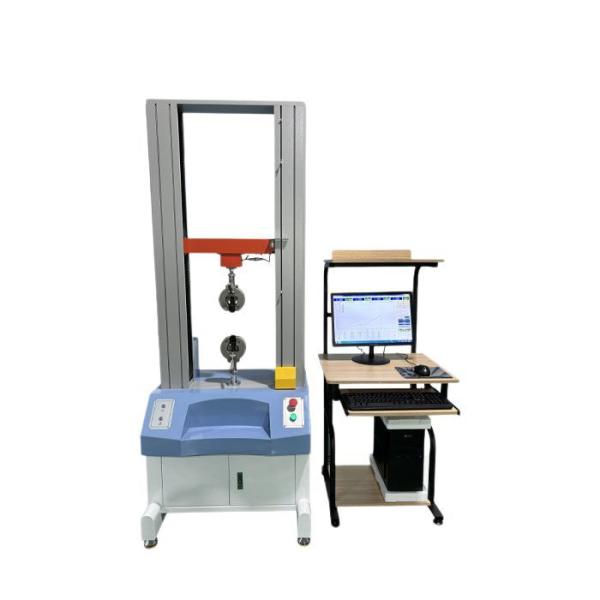

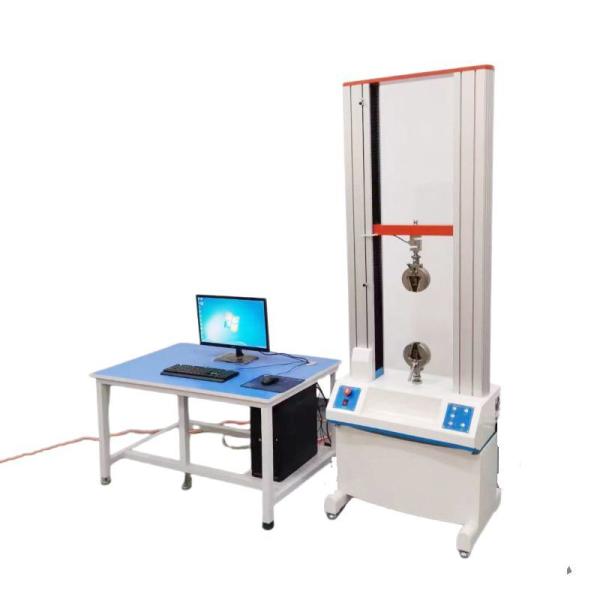

LR-Q006 Universal Tensile Testing Machine Tensile Strength Tester With Double-Column

1. Product Description

This machine is a high-precision and multi-purpose testing machine designed for conducting mechanical property tests on both metallic and non-metallic materials. It can accurately measure the physical property data of various materials under tensile conditions and features a display window for force values and displacement values. It can be used by research institutions, universities, and industrial enterprises for analyzing the mechanical properties of various materials and conducting production quality inspections. It is suitable for determining the mechanical properties of products under conditions such as tensile, compression, bending, shearing, tearing, peeling, and piercing.

2. Specification

Model

Double-column Type

Test Capacity

0 to 50 kg / 100 kg / 200 kg / 300 kg / 500 kg / 1000 kg / 2000 kg / 5000 kg range to choose

Control the Motor

Servo Motor

Test Speed

Adjustable from 0.1 to 500mm/min (servo type)

Resolution

1/250000

Power Unit

Kg, Lb, N switching function

Test Itinerary

800 mm

Effective Test Width

400mm

Control Mode

High-precision computer control software (curve graph)

Test Fixture

A set of universal fixtures is standard (please note if any special requirements are needed)

Protective Device

Leakage protection, automatic shutdown protection under overload, and travel limit protection

Display Mode

The computer display screen shows

Machine Weight

About 185 kilograms

Power Supply

220V 50Hz
