FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen
FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen
FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen
FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen
FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen
FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q002
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Test station :
1 station
Test product size :
0 - 15 inches
Test angle :
0 - 180° programmable
Bend radius :
R1 - R20 manually adjustable
Test cycle range :
0 - 99999999 times set by PLC
Description

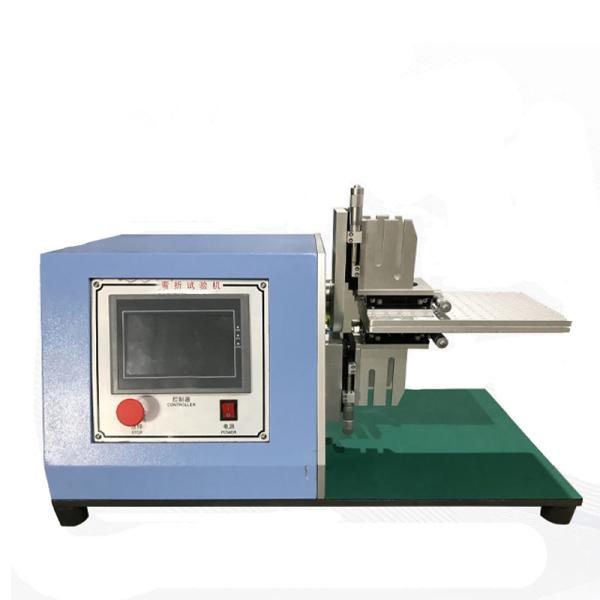

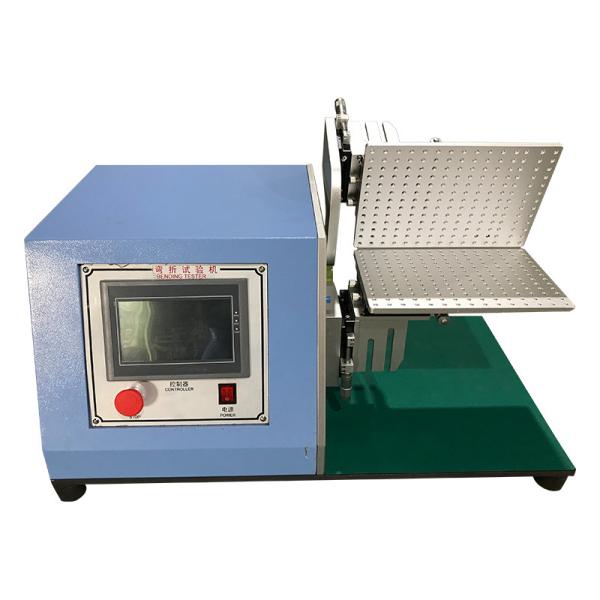

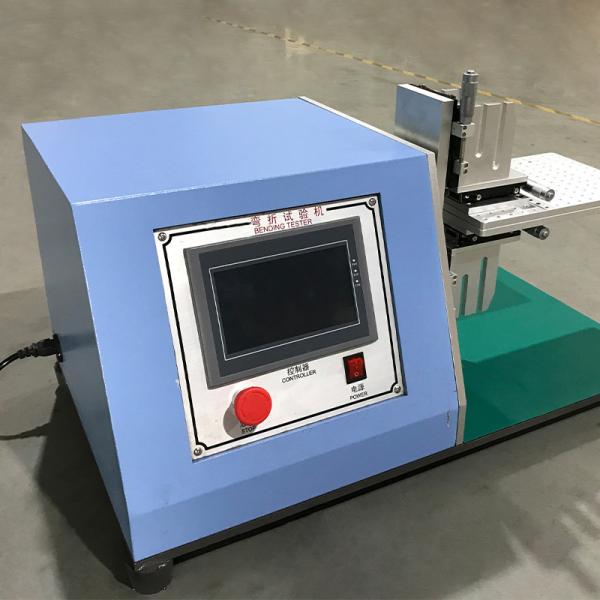

LR-Q002 Touch Screen FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus

1. Product Description

The main design of this machine is to conduct repeated bending tests on FPC wiring, with certain speed, stroke, (angle), and count conditions for back-and-forth bending tests.The main design of this machine is composed of AC servo motor, imported linear slider, PLC program, touch screen, steel, etc. It is a professional testing equipment specifically for FPC products. It is simple and easy to operate, and has extremely high stability.

2. Specification

Test station

1 station

Test product size

0 - 15 inches

Test angle

0 - 180° programmable

Bend radius

R1 - R20 manually adjustable

Test cycle range

0 - 99999999 times set by PLC

Test speed range

10 - 60 times/minute adjustable

Operating mode

7-inch color touch screen

Control mode

PLC software

Transmission

Uses AC servo motor

Fixture

Designed according to the sample

Power supply

220V 50HZ

Weight

Approximately 45kg
