Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine
Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-KRL
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power source :
Servo motor
Warranty :
1 Year
Description

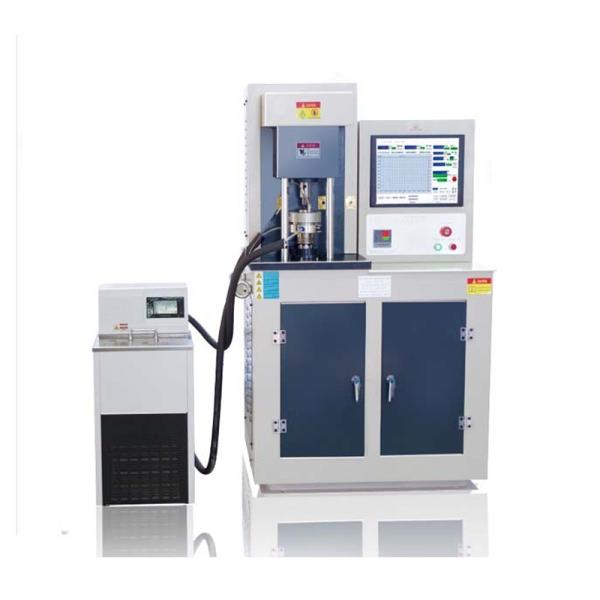

Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine

Product Introduction

Using a conical roller bearing testing machine, under conditions similar to those of a gearbox, the lubricating oil is subjected to mechanical shear stress, resulting in a permanent loss of viscosity. The viscosity shear stability of the lubricating oil is expressed by the rate of decrease in the kinematic viscosity before and after the test.

Product Parameter

Test load [N]

10 - 9800

Load measurement accuracy

0.1%FS, the absolute accuracy throughout the entire range is less than 5N

Load holding accuracy

5000N±5N

Loading method

Fully automatic loading, contact measurement

Main shaft radial runout [mm]

≤0.01

Power source

Servo motor

Motor power [KW]

2.0

Main shaft speed [r/min]

5 - 3000

Axis operation control method

Manual and automatic control

Constant temperature circulation system [℃]

-10℃ - 120℃

Temperature control accuracy [℃]

±0.02
