Gear Wear Testing Machine Cog Wheel Abrasion Laboratory Testing Meter Gear Wear Tester
Gear Wear Testing Machine Cog Wheel Abrasion Laboratory Testing Meter Gear Wear Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-MFZG
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Warranty :
1 year
Maximum torque :
100kg·m（1KN.M）
Load level :
14th generation
Test oil temperature :
200 ± 3℃
Description

Gear Wear Testing Machine Cog Wheel Abrasion Laboratory Testing Meter Gear Wear Tester

Product Introduction

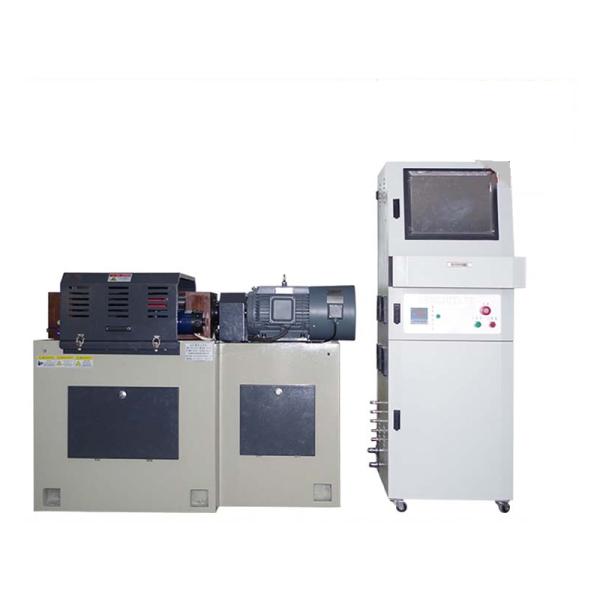

The LR-MFZG type gear wear testing machine is a cost-effective laboratory evaluation equipment developed by our company to meet the research needs of gear oil lubrication performance, gear material and process, and production users. This testing machine can mainly complete the following tests:
1.The gear abrasion load and weight changes caused by gear oil are determined through the German lubrication test (DIN51354) standard method, namely the FZG gear oil test.
2. Determine the strength curves of the tooth surface load-bearing capacity of gears made of different materials.
3. Determine the strength curves of the tooth root load-bearing capacity of gears made of different materials.
4. Fatigue strength test of tooth surface.
5. Test for the determination of shear stability of lubricating oil.


Product Parameter

Maximum torque

100kg·m(1KN.M)

Load level

14th generation

Speed

5000 r/min (servo continuous speed regulation)

Test oil temperature

200 ± 3℃

Frame structure

Variable modulus architecture, maximum power 15KW
