Pin-disk Tribometer Wear Testing Machine Friction Wear Testing Instrument
Pin-disk Tribometer Wear Testing Machine Friction Wear Testing Instrument
Specifications
Brand Name :
Lonroy
Model Number :
LR-MPX
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Warranty :
1 year
Friction torque measurement accuracy :
±2%
Maximum load :
30Kg
Maximum friction torque :
1N.m
Description

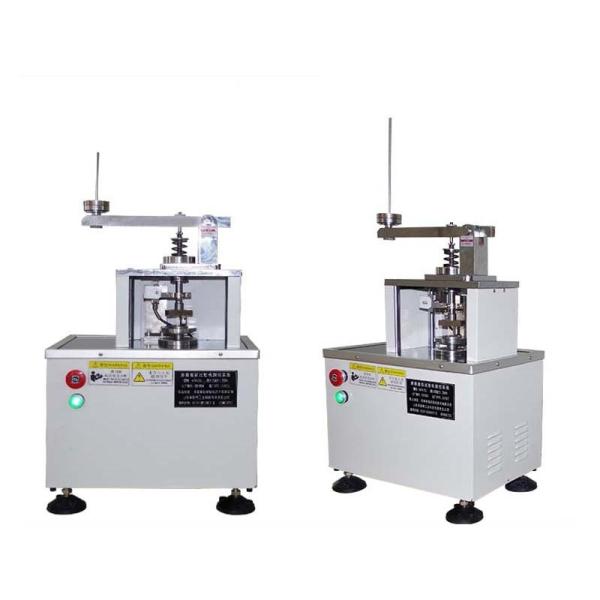

Pin-disk Tribometer Wear Testing Machine Friction Wear Testing Instrument

Product Introduction

This disc friction wear testing machine features a lower-mounted rotating spindle and two loading methods at the upper part: direct and indirect. This design effectively reduces the error of test force under small loads. During the test, various metal and non-metal materials (plastics, nylon, etc.) can be made into disc-type or double-ring type, with ring-disc type contact samples. These samples can undergo end-face sliding friction tests on this disc friction wear testing machine to determine the wear performance of various materials under selected loads and speeds. It can also measure the friction coefficient of various materials. This testing machine is suitable for enterprises' detection and research departments to conduct comprehensive comparative studies on materials, and it is also an efficient testing instrument for various universities to carry out "frictionology" teaching and research.


Product Parameter

Maximum load

30Kg

Load application accuracy of the test force

500g ± 10g 30Kg±30g

Spindle speed

1 - 2000 r/min servo motor with stepless speed adjustment

Maximum friction torque

1N.m

Friction torque measurement accuracy

±2%

Diameter of the pin specimen

4mm optional

Maximum diameter of the disc specimen

60mm

Contact form

Disc-type (bolt-type), expandable

Control method

Microcomputer semi-automatic control

Dimensions of the shape

420x270x580

Power supply

220V 50Hz 5A
