ASTM F2357 RCA Paper Tape Wear Resistance Testing Machine
ASTM F2357 RCA Paper Tape Wear Resistance Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q035
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Test Load Options :
55g / 175g / 275g (adaptable to material softness)
Standard Load :
275g (lever base)
Reduction Weights :
55g + 175g weights (reduce load to 55g or 175g)
Abrasion Inspection :
Illuminated magnifier
Cycle Counter :
Digital LCD display (0–999,999 programmable)
Net Weight :
20 kg (main unit)
Description

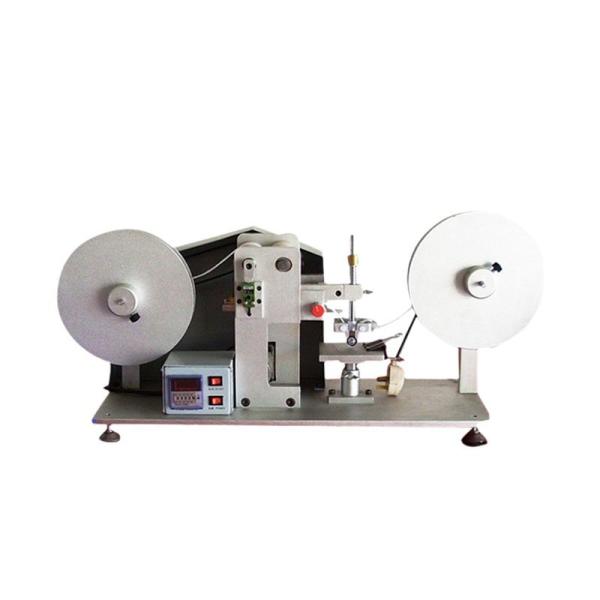

LR-Q035 ASTM F2357 RCA Paper Tape Wear Resistance Testing Machine

1. Product Description

This is a wear resistance test applicable to mobile phones, laptops and various surface-coated products. The load is 55g, 175g, or 275g. Uncoated paper or tape is rolled and rubbed against the sample, and then the wear effect is judged under a certain number of revolutions.It is suitable for testing the wear resistance of plastic surface coatings, and is mostly used for mobile phone key printing, mobile phone shells, MP3, CD players, laptops, PDAs, electrical appliance shells and other products.

This testing machine uses a special paper strip as the friction medium. A fixed load is applied to the friction head, and the friction head drives the rotating paper strip through a fixed-diameter roller and a constant-speed motor to continuously apply force to the surface of the sample until the surface substrate is seen or a specific wear degree is reached. The motor rotation count displayed by the counter is used to evaluate the wear resistance of the sample.

2. Compliance standards

ASTM F2357-04. It has now become the most widely used instrument for testing the wear resistance of various plastic coated products.

3. Specification

Parameter

Specification

Test Load Options

55g / 175g / 275g (adaptable to material softness)

Standard Load

275g (lever base)

Reduction Weights

55g + 175g weights (reduce load to 55g or 175g)

Abrasion Inspection

Illuminated magnifier

Cycle Counter

Digital LCD display (0–999,999 programmable)

Net Weight

20 kg (main unit)

Power Supply

1∮ AC 220V 50Hz

Dimensions (L×W×H)

530×490×410 mm

Standard Accessories

Tool set ×1

Illuminated magnifier ×1

Reduction weights (55g+175g) ×1 each

O-rings ×3

Paper tape roll ×1
