TABER Wear Resistance Testing Machine Wear Abrasion Test Equipment
TABER Wear Resistance Testing Machine Wear Abrasion Test Equipment
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q036
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Abrasive Wheel :
OD: 51.8 mm
Wheel Spacing :
52.4 mm (center-to-center)
Rotational Speed :
10–72 rpm (adjustable, switchable display)
Cycle Counter :
LED display, 0–9,999 cycles
Specimen-Nozzle Distance :
3 mm (adjustable)
Pendulum Arm Load :
250 g
Description

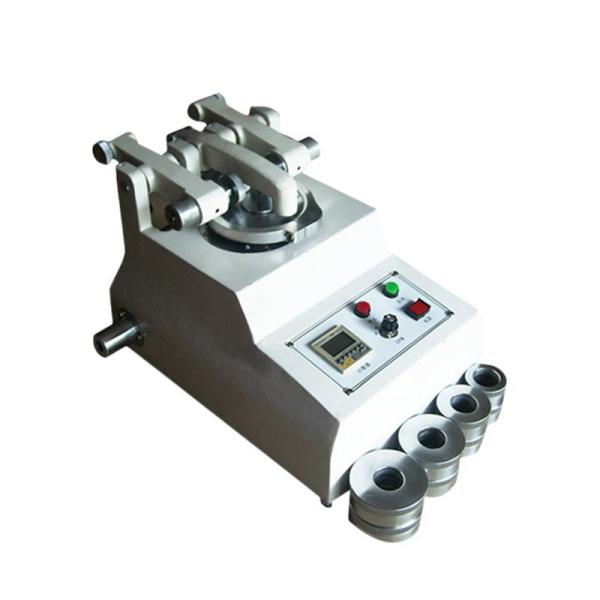

LR-Q036 TABER Wear Resistance Testing Machine Wear Abrasion Test Equipment

1. Product Description

The TABER wear testing machine (hereinafter referred to as the "instrument") is the most widely used instrument for durability testing of products in various countries. These products include plastics, paper, coatings, textiles, leather, and flooring, among others. It provides rapid and accurate testing methods for the research, development, and improvement of product quality of raw materials. These testing methods have been incorporated into numerous standards such as ASTM, ISO, NEMA, TAPPI, DIN, SAE, and JIS.

2. Main functional Principle

The upper part of this instrument consists of a sample holder and a pair of wear wheels. The wear wheels are additionally equipped with counterweight weights. The motor rotates the sample holder, which in turn drives the wear wheels, causing friction between the wear wheels and the sample. After a certain number of friction operations, the instrument stops running, the sample is removed, and the degree of wear is observed to evaluate the wear resistance of the material, providing reference data for material selection.

3. Technical Parameters

Parameter

Specification

Specimen Dimensions

OD: 112.8 mm / 100 mm

ID: 6.5 mm

Thickness: 3 mm

Abrasive Wheel

OD: 51.8 mm

Wheel Spacing

52.4 mm (center-to-center)

Rotational Speed

10–72 rpm (adjustable, switchable display)

Cycle Counter

LED display, 0–9,999 cycles

Specimen-Nozzle Distance

3 mm (adjustable)

Pendulum Arm Load

250 g

Calibration Weights

500 g ×2 / 1000 g ×2

Dimensions (L×W×H)

400×280×290 mm

Net Weight

20 kg

Power Supply

1∮ AC 220V 50Hz 1A

Power Consumption

40 W (excludes dust extractor)
