Specifications
Brand Name :
Lonroy
Model Number :
LR-YLD
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Warranty :
1 Year
Costomizable :
Available
Description

General Vertical Balancing Machine Single-sided Vertical Equilibrium Instrument

Product Introduction

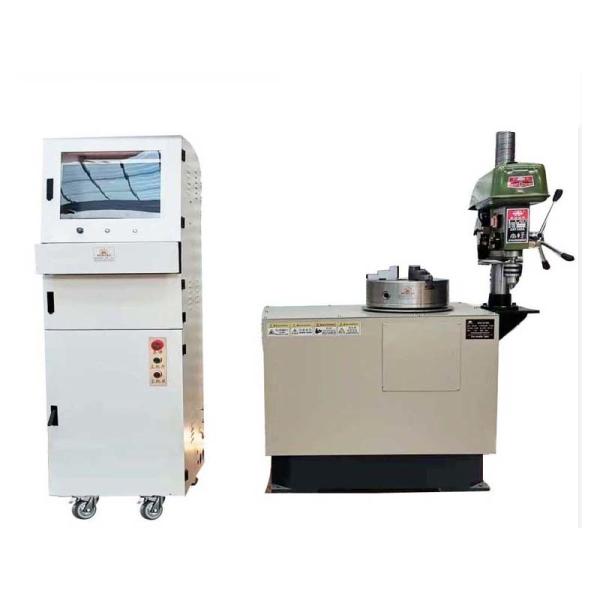

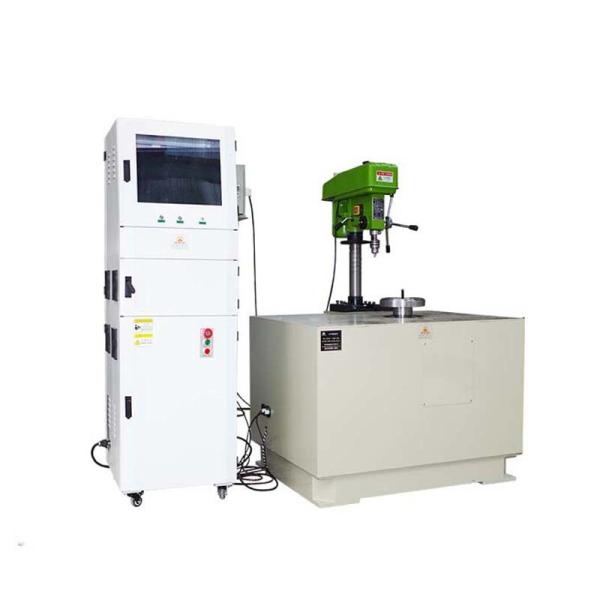

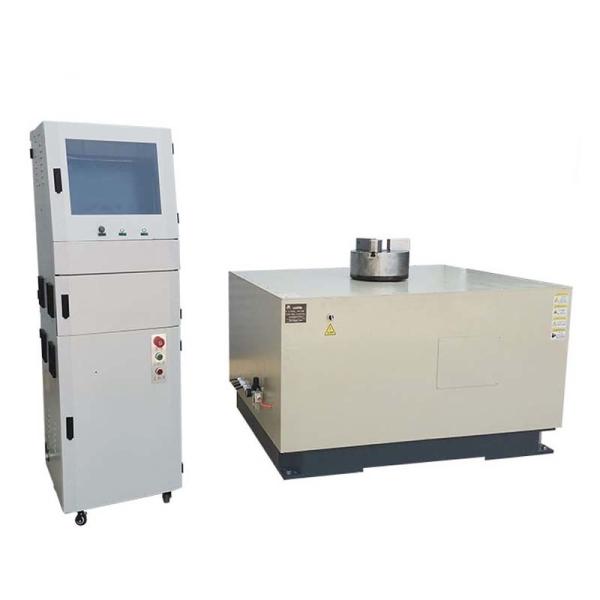

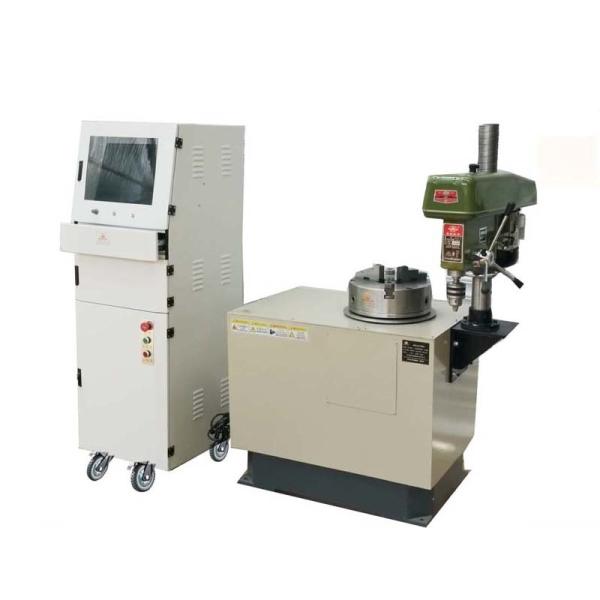

This machine is suitable for dynamic balance verification on the single surface of disc-shaped rotating parts. It is an ideal equipment for dynamic balance verification of fan blades, exhaust fan blades, automotive flywheels, clutches, brake discs, brake hubs, hydraulic couplings and other components. Just by changing the fixture for installing the workpiece, balance verification can be carried out. Data processing is conducted by an industrial control computer, with a color screen displaying the unbalance value, phase angle and real-time speed in real time. It is equipped with an industrial cabinet, forming a balancing machine system with the mechanical part, which is convenient for parameter storage, printing and system testing. The system has high testing accuracy, reliable operation and easy maintenance, and is more advanced than other testing systems. It can also be customized with various universal or special fixtures according to the customer's workpiece, and can be equipped with side drilling machines for weight reduction, vertical drilling machines for weight reduction and dust removal devices, etc.

Product Parameter

Model

Workpiece quality range kg

Large diameter of the workpiece mm

Balancing speed r/min

The minimum achievable residual unbalance g.mm/kg

Reduction rate of unbalance %

Motor power

kw

Speed adjustment mode

YLD-5A

0.1-5

Φ500

250-1500

≤3

≥90

1.1

Variable frequency speed control

YLD-16A

0.5-16

Φ500

250-1500

≤3

≥90

1.1

Variable frequency speed control

YLD-30A

2-30

Φ600

250-1500

≤3

≥90

1.5

Variable frequency speed control

YLD-50A

3-50

Φ800

250-1500

≤3

≥90

1.5

Variable frequency speed control

YLD-100A

5-100

Φ800

250-1500

≤3

≥90

4

Variable frequency speed control

YLD-200A

10-200

Φ800

250-1500

≤3

≥90

4

Variable frequency speed control
