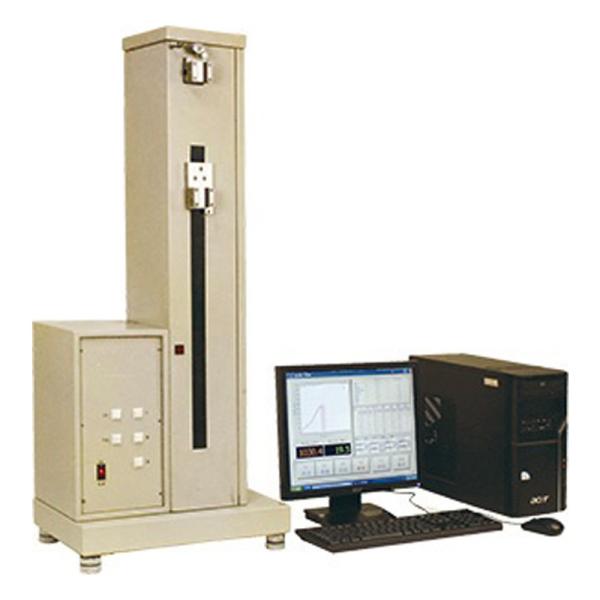

Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester
Specifications
Brand Name :
Lonroy
Model Number :
GA-7X
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Price :
Negotaible
Warranty :
1 Year
Customization :
Available
Description

Long Filament Yarn Tensile Strength Meter Yarn Tensile Tester Yarn Analyzer

1.Product Introduction
The GA-7X type long filament yarn tensile strength tester can perform tests such as fiber fixed elongation elasticity, cyclic fixed elongation elasticity, fixed load elasticity, cyclic fixed load elasticity, relaxation, and creep. The testing methods comply with the requirements of the International Organization for Standardization and are suitable for the performance testing of elastic yarns.
The instrument can be used for the testing of breaking strength and breaking elongation of synthetic fiber monofilaments, spandex, nylon, polyester long filaments, stranded and composite filaments, and deformed filaments.

2.Product Paramter

Force value measurement range 0~1000cN
Force value measurement error ≤±1%
Force value measurement resolution 0.1cN
Extension measurement range 0~300mm(the clamping distance is 500mm)
Extension measurement error ≤0.5mm
Extension measurement resolution 0.1%
Clamping distance 250,500mm
Stretching speed 50~1000mm/min
Power supply and power consumption Dimensions of the shape 220V~±10%,50±1Hz,≤100VA
Force value measurement range 300×450×1170(L×W×H)mm
