Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Fiber Tensile Lab Test Machine Pre Tensioned Filament Tensile Strength Test Machine
Specifications
Brand Name :
Lonroy
Model Number :
GA-9Q
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Price :
Negotiable
Warranty :
1 Year
Customization :
Available
Description

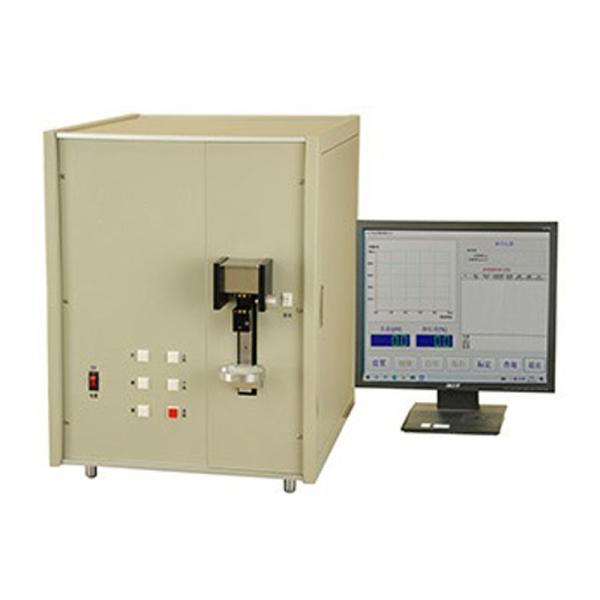

Pre-tensioned Filament Tensile Strength Tester Fiber Tensile Tester

1.Product Introduction
The GA-9Q type pre-tensioned filament tensile strength tester is a new type of instrument which meets the quality control requirements of the production process of polyester short fibers. It features pneumatic clamping, automatic operation, and rapid measurement. It is suitable for testing individual polyester raw filaments.
The instrument complies with the testing method standards stipulated in the industry standard FZ/T 54003 and can test six indicators: the natural elongation rate of pre-tensioned filaments, EYS1.5, natural tensile ratio, maximum tensile ratio, breaking strength, and breaking elongation, both single values and statistical values.

2.Product Paramter

Load measurement range 0~100cN
Load measurement error ≤±1%
Load measurement resolution 0.01cN
Extension measurement range 100mm
Extension measurement error ≤0.05mm
Extension measurement resolution 0.10%
Lower clamping device descent speed 1~100mm/min
Lower clamping device stroke 100mm
Data interface RS232,Can be equipped with a vibrating thread density meter
Power supply AC220V±10%
The weight and size of the mainframe Above45kg,540×434×560mm
