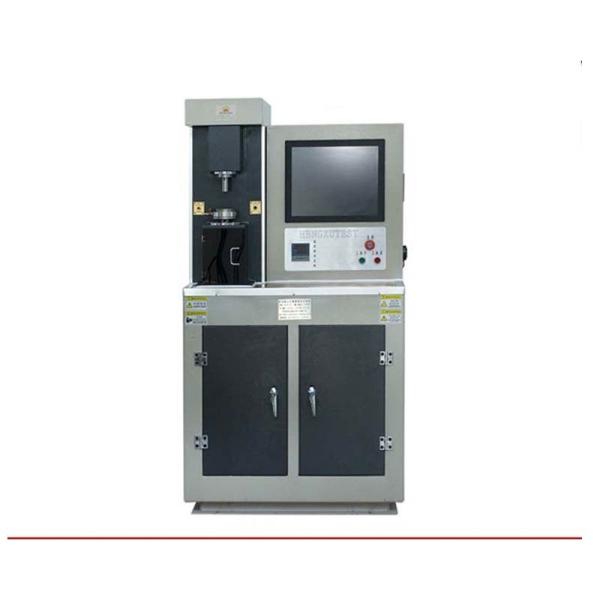

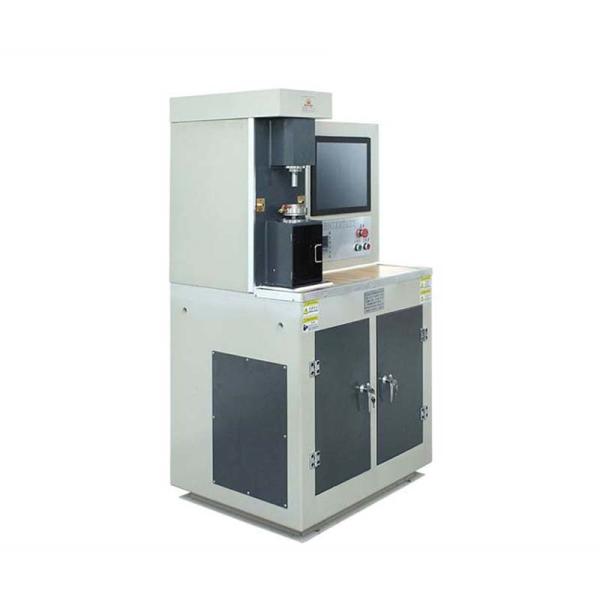

Multi Functional Friction And Wear Testing Machine Vertical Rubbing Wear Instrument
Multi Functional Friction And Wear Testing Machine Vertical Rubbing Wear Instrument
Multi Functional Friction And Wear Testing Machine Vertical Rubbing Wear Instrument
Multi Functional Friction And Wear Testing Machine Vertical Rubbing Wear Instrument
Specifications
Brand Name :
Lonroy
Model Number :
LR-MVF
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Main shaft taper of the test machine :
1:7
Measurement of large friction torque :
2.5N.m
Test medium :
Oil, water, mud, abrasive materials, etc.
Test machine net weight :
Approximately 550 kilograms
Description

Multi-functional Friction and Wear Testing Machine Vertical Rubbing Wear Instrument

Product Introduction

The LR-MVF friction and wear testing machine operates under a certain contact pressure, featuring rolling, sliding or a combined motion of rolling and sliding. It has a continuously variable speed system and can be used to evaluate the friction and wear properties of materials such as lubricants, metals, plastics, coatings, rubber, ceramics, etc., at extremely low or high speeds. For example, it can conduct tests on the friction functions of low-speed disc (with large and small discs, single needle and three needles), the long-term anti-wear performance of four-ball, the rolling contact fatigue of four-ball, the lubrication performance of ball-bronze three-layer, as well as the tests of thrust washers, ball-disc, mudstone wear, and the lip sealing torque and adhesive-slip friction performance of rubber sealing rings. By matching the reciprocating module, it can achieve reciprocating friction and wear motion. This testing machine has broad application prospects in various technical fields of tribology, petrochemicals, machinery, energy, metallurgy, aerospace, various colleges and universities, and research institutes (labs).

Product Parameter

Axial test force working range

20N - 2000N (adjustable continuously)

Measurement of large friction torque

2.5N.m

Single-stage continuously variable transmission system

5-2000r/min

Test medium

Oil, water, mud, abrasive materials, etc.

Heater working range

Room temperature ~ 200℃ (260℃)

Maintenance method of friction pair discs

Gap-free circumferential retention (imported components)

Main shaft taper of the test machine

1:7

Large distance between the main shaft of the test machine and the lower friction disc

>75mm

Test machine control system

Industrial touch screen control, Windows 7 control system

Test machine time display and control range

10s ~ 9999min

Test machine rotational speed (cycle) display and control range

(1 ~ 99) × 105

Main motor of the test machine outputs large torque

5N.m

Main body

Using a cast-assembly main unit and a high-strength welded base frame

Test machine external dimensions: L×B×H

860×740×1560mm

Test machine net weight

Approximately 550 kilograms
