Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument
Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument
Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument
Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument
Specifications
Brand Name :
Lonroy
Model Number :
LR-STY
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Maximum friction force :
200N
Working temperature range of the heater :
indoor temperature,～250℃
Temperature control accuracy :
±3℃
Maximum test force :
10000N
Description

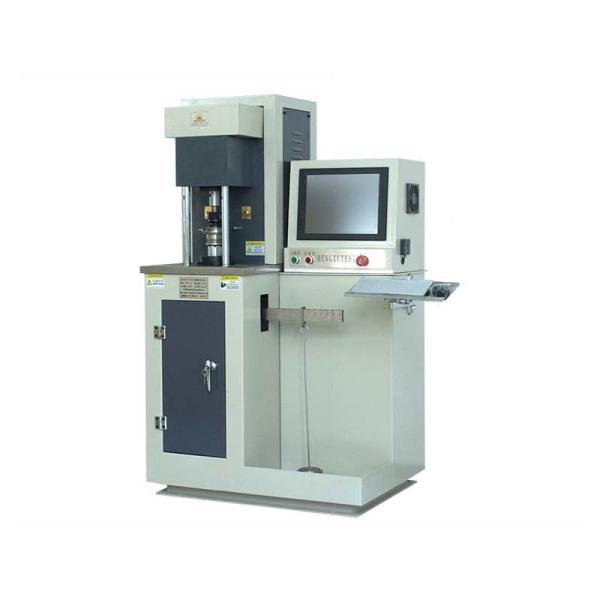

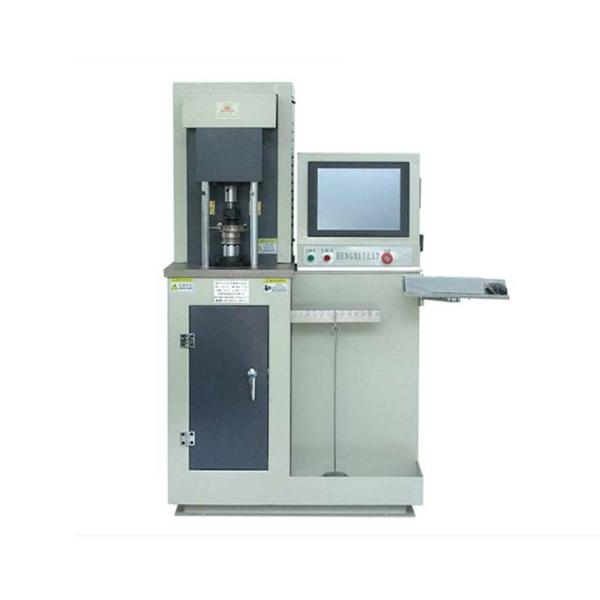

Lever Four-ball Friction Testing Machine Rubbing Wear Instrument

Product Introduction

The Lever Four-ball Friction Testing Machine is a cost-effective laboratory evaluation equipment developed by our company to meet the needs of lubricant research and production users. This testing machine adopts the sliding friction mode and, under extremely high point contact pressure conditions, evaluates the bearing capacity of lubricants, including the maximum no-stall load PB, the sintering load PD, and the comprehensive wear value ZMZ, etc. three indicators.

Product Parameter

Test force

Maximum test force

10000N

Less than 4% of the maximum test force, indication error

±5N

More than 4% of the maximum test force, relative indication error

±1％

Test force loading method

Front-mounted weight loading

Frictional force

Maximum friction force

200N

Relative error of friction force indication should not exceed

±2%

Automatic stop of excessive friction force during heavy load operation

Working temperature range of the heater

indoor temperature,～250℃

Temperature control accuracy

±3℃
