Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Chemical Fiber Filament Lab Test Machine Heat Shrinkage Tester Instrument
Specifications
Brand Name :
Lonroy
Model Number :
GA-6Q
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Price :
Negotiable
Warranty :
1 year
Costomization :
Available
Description

Chemical Fiber Filament Heat Shrinkage Tester Fiber Filament Heat Shrinkage Rate Testing Instrument

1.Product Introduction

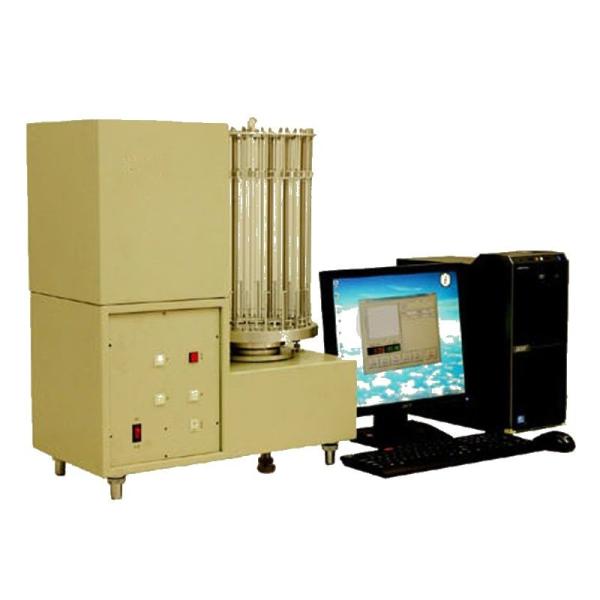

The GA-6Q type chemical fiber filament heat shrinkage tester is a chemical fiber filament heat shrinkage rate testing instrument. The instrument reads the changes in the length of the chemical fiber filament on the sample cylinder frame under certain tension before and after heating through the force measurement device, automatically calculates the average heat shrinkage rate and coefficient of variation of the sample. It is controlled by a computer to operate the process and automatically display and print the test results.
The instrument has a precise structure, is simple and fast to test, has accurate and stable test results, and has a low failure rate.
The instrument complies with the precision requirements of the testing methods standards specified in national standards GB/T6505-2008 and industry standards FZ66001-1995, etc. It is used for dry heat shrinkage rate or boiling water shrinkage rate testing of chemical fiber filaments and can be widely used in chemical fiber textile enterprises, fiber inspection institutions and research units.

2.Product Paramter

Test range of heat shrinkage rate 0~20%
Length measurement error ≤0.1mm
Length measurement resolution 0.01mm
Twisted yarn length 250mm
Force value measurement range 0~1000cN
Force value measurement error ≤±1%
Force value resolution 0.1cN
Number of samples 20
Machine weight Above 40kg
Machine size 300×560×680(L×W×H)mm
