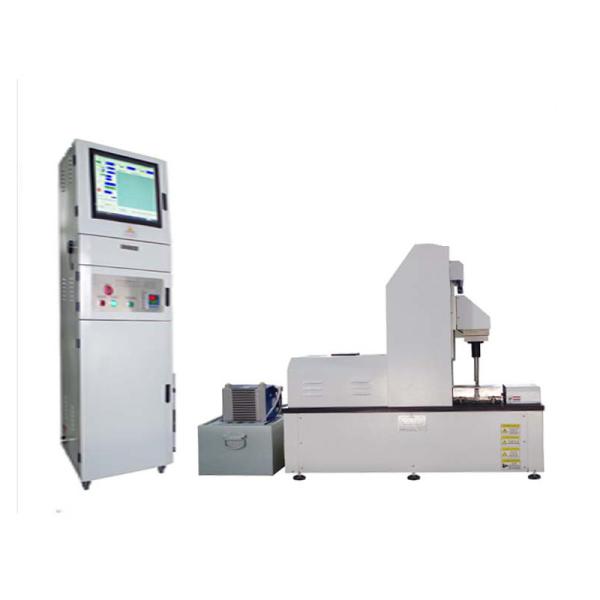

Reciprocating Friction Lab Test Machine 0 - 10Hz Repetitive Frequency
Reciprocating Friction Lab Test Machine 0 - 10Hz Repetitive Frequency
Specifications
Brand Name :
Lonroy
Model Number :
LR-HGT
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Maximum test force :
800N, with an error of ±1%
Repetitive frequency :
0 - 10 Hz
Repetitive stroke :
0 - 20 mm
Temperature measurement method :
Thermocouple
Description

High-temperature Reciprocating Friction Laboratory Machine

Product Introduction

The reciprocating friction and wear testing machine is a fully upgraded product. It is a widely used reciprocating friction and wear testing machine, mainly used for researching the friction performance of materials or surface coatings. The equipment features stable and reliable adjustment of reciprocating stroke, wide adjustment range, high measurement accuracy of friction force, and diverse testing forms.
The main friction pairs of this machine adopt standard ball friction and configurable pin-disc friction. It can realize various choices of friction pairs such as reciprocating and rotating of ball-disc-pin-disc, as well as ring-to-ring friction. The main body of the testing machine adopts computer detection and control. The dedicated friction and wear testing software developed by Lonroy based on high-speed industrial control can draw real-time curves of various parameters. The point acquisition frequency can reach up to 100 KHZ, thereby effectively achieving dynamic and effective detection of the process and improving the measurement accuracy of friction force, test force, etc. The software has parameter over-limit preset shutdown or alarm protection. The instrument is ingeniously designed, convenient for installation and debugging, with a clear and user-friendly interface, and easy to operate.

Product Parameter

Item

Parameter

1

Maximum test force

800N, with an error of ±1%

2

Loading method

Closed-loop software, automatic loading

3

Maximum force value of the force sensor

100kg

4

Repetitive frequency

0 - 10 Hz

5

Linear speed

0.01 mm/s - 100 mm/s, calculated based on a stroke of 5 mm, adjustable, with an error of ±5%

6

Friction form

Face-to-face friction between pins and discs;

7

Repetitive stroke

0 - 20 mm

8

Test temperature

Room temperature to 1200 ℃, with an error of ±2 ℃, multi-stage program setting (optional module)

9

Temperature measurement method

Thermocouple

10

Online grinding measurement

Magnetic-electromagnetic induction measurement (optional module)

11

Measurement resolution of wear amount

0.001mm

12

Lift height

0 - 50mm

13

Guide rail accuracy

△C no more than 5μm, △D no more than 8μm

14

Time display method and control

10S - 9999H (frequency and reciprocation count mode)

15

Data processing

One set of dedicated computer processing system is standardly equipped

16

Method of measuring friction force

Strain measurement
