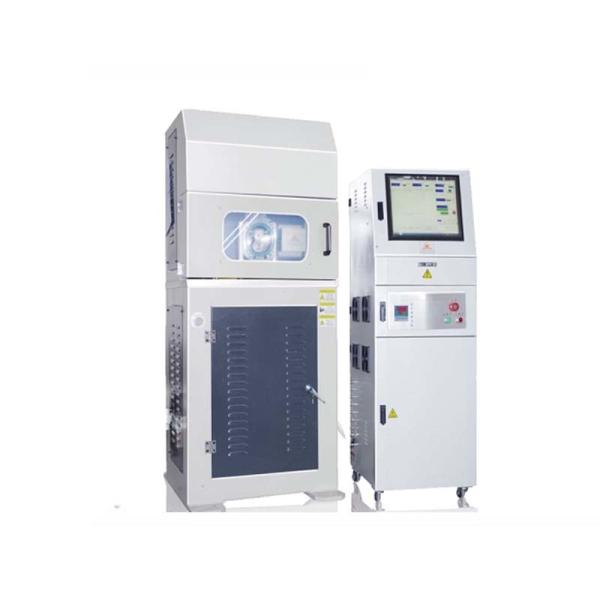

ASTM Lab Test Machine 3000N Metal Ring Block Friction And Wear Testing Equipment
ASTM Lab Test Machine 3000N Metal Ring Block Friction And Wear Testing Equipment
Specifications
Brand Name :
Lonroy
Model Number :
LR-MDI
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Maximum test force :
3000N
Maximum friction force :
300N
Friction force accuracy :
±1%
Test machine external dimensions :
1000×700×1470
Description

Metal Ring Block Friction and Wear Testing Equipment

Product Introduction

The ring block friction and wear testing machine uses the method of linear contact sliding friction to test the friction and wear performance of the samples. The working principle is as follows: the driving part is a standard rotating ring, and the driven part is a fixed standard-sized rectangular block. By measuring the width of the strip-shaped wear marks on the rectangular block of the passive sample under different loads, as well as the friction force and friction coefficient between the friction pairs of materials, the bearing capacity of the lubricant and the friction and wear performance of the friction pairs of materials can be evaluated. It can also be used to evaluate the lubrication performance of various lubricants under oil immersion lubrication conditions, especially suitable for the simulation evaluation of the anti-abrasion performance of medium and high-end automotive gear oils, and can be used for the wear performance research of various metals, non-metals and coatings.

Product Parameter

Maximum test force

3000N

Test force accuracy

±0.5%

Maximum friction force

300N

Friction force accuracy

±1%

Main shaft speed regulation range

5-2000r/min(Optional high speed)

Main shaft speed error

±1%

Main shaft rotation number display range

0-9999999

Time display range

0-9999s or min

Main shaft control method

servo control

Control software

HTMS advanced friction and wear control system for special applications

Loading method

Servo fully automatic loading

Test oil temperature

Room temperature to -100℃ (HX-PID self-tuning temperature control system)

Temperature measurement accuracy

±2℃

Control system

Using industrial motherboard, full-screen touch control throughout the process, loading rate can be adjusted in 3 segments, real-time curve acquisition, single-point acquisition, data export

Test machine external dimensions

1000×700×1470

Test machine net weight

450kg
