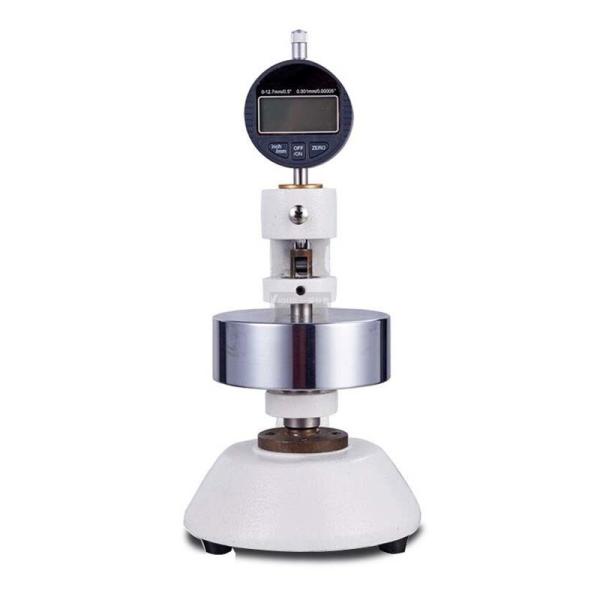

lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm
lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm
lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm
lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm
lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm
lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm
Specifications
Model Number :
LR-F027B
Measure Range :
(0~4)mm
Weight :
5KG
Outside size :
(200x150x250)mm
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Certification :
ISO ASTM CE
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

lSO 534 Paper Thickness Tester High Precision Thickness Measurement 0-4mm

1. Introduction
The paper thickness tester uses digital display to read the thickness of the measured objects, and its technical requirements and detection methods are in line with the standard QB/T1055
"Paper and board thickness tester" and other standards of the requirements and provisions, used for testing packaging paper and coated printing paper within 4mm single layer thickness, layer thickness and apparent density determination, suitable for paper mills, scientific research colleges and quality inspection departments.

2. Test principle
To measure the thickness of a single sheet of cardboard or a stack of cardboard in accordance with the accuracy requirements of a thickness gauge under a prescribed static load, to display the results of the single-layer thickness or stack thickness measurement, respectively, and to calculate the single-layer tightness or stack tightness, respectively, according to the quantity of the sheet of paper or cardboard and the single-layer thickness or stack thickness.


3. Test Standard

QB/T 1055, GB/T 6547, ISO 534


4. Specification

Measure Range (0~4)mm
Accuracy 0.001mm
Contact Pressure GBT(100±10)kpa
Contact Area (200±5)mm²
Diameter of Chassis convex platform (16±0.15)mm
Indication error 0.05%
Parallelism ≤0.035mm
Display Digital display
Outside size (200x150x250)mm
Weight About 5KG
Work environment Temperature (20±10) ºC, humidity < 85%

Product Configuration

Standard configuration Base, digital display table, manual, warranty card, certificate of quality
Optional Configuration Digital display table (0.1/0.001/0.0001), professional software, communication cable, etc
