ASTM D3078 Digital Display Vacuum Sealing Performance Tester
ASTM D3078 Digital Display Vacuum Sealing Performance Tester
Specifications
Model Number :
LX-MFY-02
Overall Dimension :
420mm(L)×320mm(B)×520mm(H)
 Power Source :
AC 220V 50HZ
Net weight :
15kg
Standards :
GB/T 15171, ASTM D3078
Warranty :
1 year
Material :
Stainless steel
Display :
Digital LCD
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Description

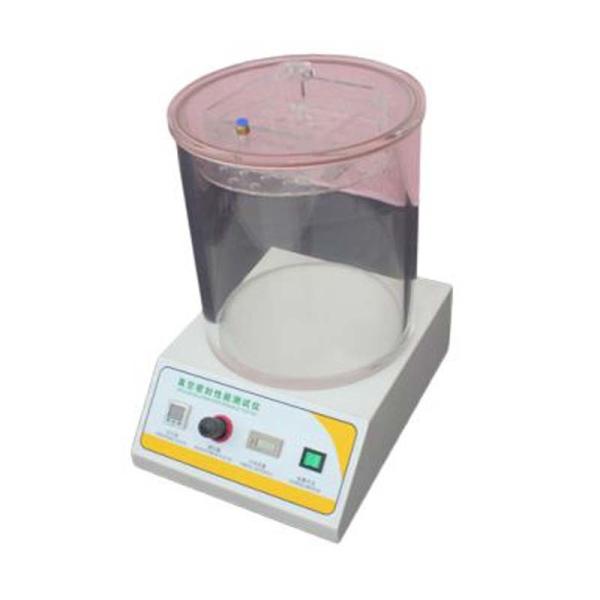

ASTM D3078 Digital Display Vacuum Sealing Performance Tester

1. Product use
Suitable for food, pharmaceutical, medical equipment, daily chemical, automobile, electronic components, stationery and other industries of packaging bags, bottles, tubes, cans, boxes and other sealing test.It can also test the sealing performance of the specimen after the drop and pressure test


2. Test principle
By vacuuming the vacuum chamber, so that the sample immersed in water produced internal and external pressure difference, observation of the sample gas escape, in order to determine the sealing performance of the sample;By vacuuming the vacuum chamber, the pressure difference between inside and outside of the sample was generated, and the shape recovery of the sample was observed after the expansion of the sample and the release of the vacuum, so as to determine the sealing performance of the sample.

3. Product features
1. Electronic control pressure holding, PVC operation panel
2. High-quality thickened plexiglass sealed barrel with wall thickness of 15mm
3. Precision pneumatic components, superior sealing performance
4. Pressure digital display, instant and accurate
5. Electronic pressure holding switch, easy to operate, longer pressure holding time
6. Built-in time display, keeping pressure time at a glance


4. Technical parameters

True void -90 ~ 0kPa
Fineness Level 1
Vacuum chamber effective size Φ270mm×270 mm (H) (standard)
Air pressure 0.7Mpa (supplied by the user)
Air source interface Φ8 polyurethane tube
Overall dimension 420mm(L)×320mm(B)×520mm(H)
Power source AC 220V 50HZ
Net weight 15kg
Standard configuration main engine test sealed drum air source line
According to standards GB/T 15171, ASTM D3078
