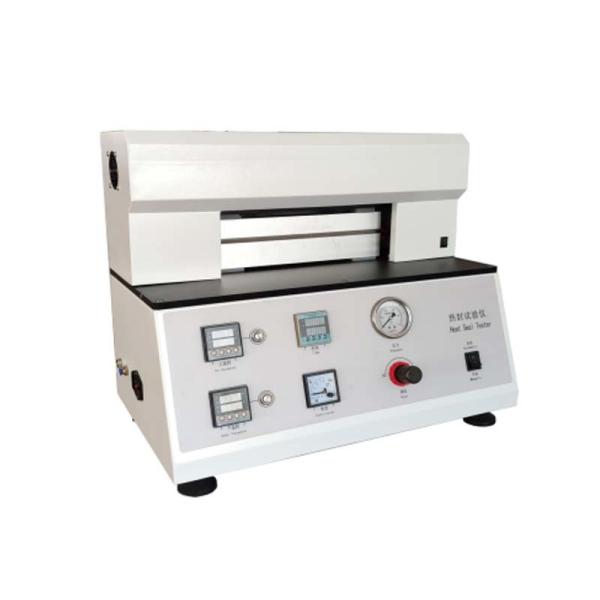

ASTM F2029 Heat Seal Tester for Plastic Film Packaging
ASTM F2029 Heat Seal Tester for Plastic Film Packaging
Specifications
Model Number :
LR-F060
Supply voltage :
AC220V 50HZ
Hot Sealing Surface :
300mm×10mm (other sizes can be customized)
Net weight :
About30 kg
Main engine size :
550*330*460mm(L×B×H)
Application :
Film Testing
Warranty :
1 year
Product Type :
Testing Equipment
Material :
Metal
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Description

ASTM F2029 Heat Seal Tester for Plastic Film Packaging

1. Product features
LR-F060 heat sealing instrument is used to measure the heat sealing temperature, heat sealing time, heat sealing pressure and other parameters of plastic film substrate, flexible packaging composite film, coated paper and other heat sealing composite film by hot pressing sealing method, so as to provide accurate heat sealing test index for users. The control system is fully digital, the key components are made of internationally renowned brand products, with a high degree of automation and easy operation.

2. Product features
1. Digital display of control system, fully automated operation;
2. Digital P.I.D. temperature control, high temperature control accuracy;
3. The hot sealing knife material is made of aluminum alloy, and the temperature conduction is fast and the temperature of the hot sealing surface is uniform.
4. Customized special mold heating tube, rapid heating, long life;
5. Double cylinder structure, the internal adjustable pressure balance mechanism, to ensure that the sealing tool up and down movement is consistent;
6. High precision pneumatic control components, a full set of international well-known brands;
7. Anti-hot design and leakage protection design, safer operation;
8. The heating element is carefully designed to make the service life of the equipment long;
9. Automatic and manual two working modes, can achieve efficient operation;
10. According to the principle of ergonomics, the operation panel is specially optimized for convenient operation;
11. Both sides of the instrument equipped with cooling fans, large air volume heat dissipation uniform and fast;


3. Technical parameters

Model number LR-F060
Supply voltage AC220V 50HZ
Heat seal temperature Room temperature +10~~250ºC
Temperature control accuracy ±1ºC
Heat seal pressure The range from 0 to 0.7Mpa can be adjusted
Heat sealing time The range is 0.01~~~99.99s
Hot sealing surface 300mm×10mm (other sizes can be customized)
Heating method Single heating or double heating; Both upper and lower sealing knives can be switched separately and temperature controlled separately
Test mode Manual mode/Automatic mode
(Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);
Air source pressure ≤0.7MPa(user-supplied)
Test condition Standard laboratory environment
Main engine size 550*330*460mm(L×B×H)
Net weight About30 kg
According to standard QB/T 2358,ASTM F2029,YBB 00122003 etc
Standard configuration Host + foot switch + air supply cable + power cable + technical document
