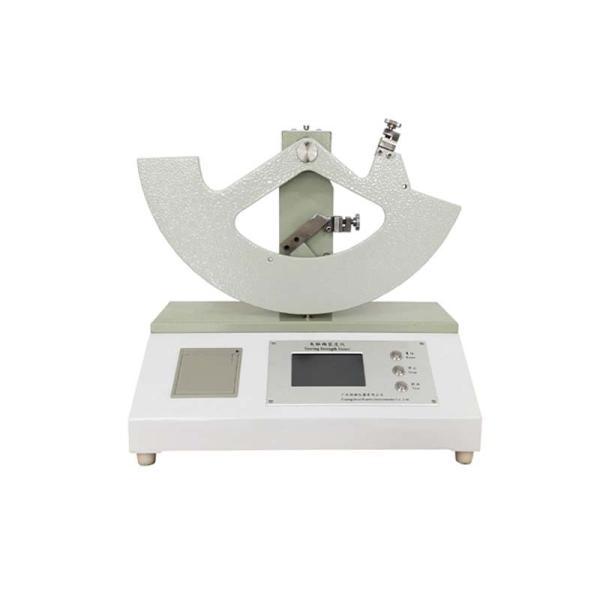

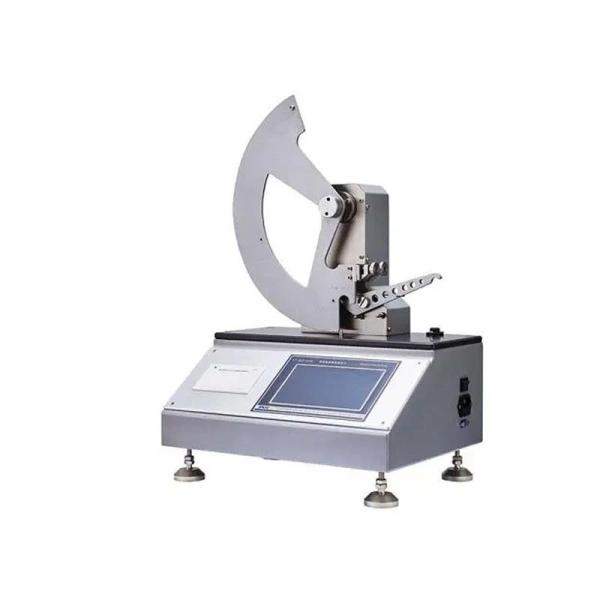

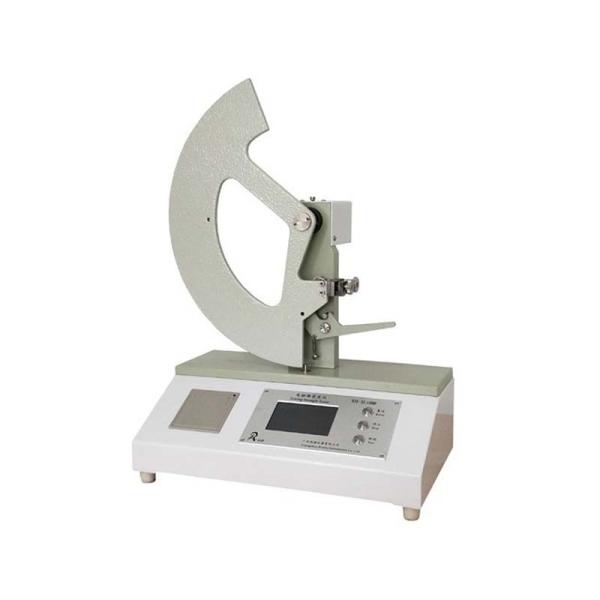

ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument
ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument
ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument
ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument
ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument
ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument
Specifications
Model Number :
LR-F002
Pendulum Capacity :
10--64000mN
Weight :
20kg
Dimensions :
450×330×440mm
Tearing initial angle :
27.5°±0.5°
Power :
AC220V,50Hz
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Description

ISO 6383/2 Film Tear Tester Elmendorf Tear Strength Test Instrument


1. Introduction
Adoption of the tearing theory, according to the Elmendorf method, for testing the tearing strength of films, sheets, flexible PVC, PVDC, waterproofing rolls, woven materials, polyolefins, fabrics ......

Test Standards: ISO6383/2-1983, GB11999-89, ISO1974, TAPPI414, GB455, ASTM D1922, ASTM D1424, ASTM D689

2. Product Features
1. The use of high-precision angle sensors with a resolution of 0.1mN ensures that the test error is within ±1%, and the user can use weights to check the indicated value of the equipment.
2. The internal balancer compensation device can reduce the impact of friction, so that the test results are more stable and accurate.
3. Liquid English menu, friendly human-machine interface, can automatically complete the test. With test data statistics and processing function, the test results can be output by micro printer to automatically display and record the test results. Reduces user error and ensures stable and accurate test results.
4. Professional calibration weights are provided with built-in calibration program. Enter the calibration menu, put the calibration weight into the calibration bolt, and then you can do the calibration directly.


3. Technical Parameters

Pendulum Capacity 10--64000mN
Resolution 0.1mN
Accuracy ±1%
Tearing arm length (104±1)mm
Tearing initial angle 27.5°±0.5°
Clamp distance (2.8±0.3)mm
Sample length of incision (20±0.5)mm
Dimensions 450×330×440mm
Weighs About 20kg
Power AC220V, 50Hz
