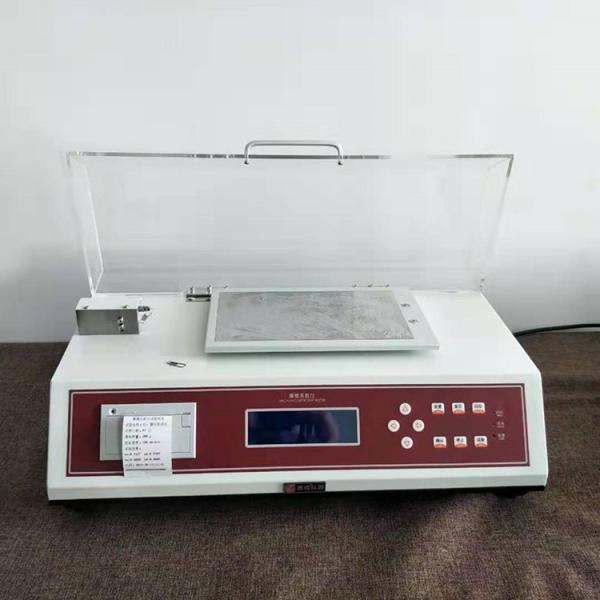

ASTM D202 Static COF Tester Inclined Surface Coefficient Of Friction Tester
ASTM D202 Static COF Tester Inclined Surface Coefficient Of Friction Tester
ASTM D202 Static COF Tester Inclined Surface Coefficient Of Friction Tester
ASTM D202 Static COF Tester Inclined Surface Coefficient Of Friction Tester
Specifications
Model Number :
LR-F055B
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Angle Range :
0° ~ 85°
Net Weight :
20 kg
Dimension :
440 mm (L) x 305 mm (W) x 200 mm (H)
Power Supply :
AC 220V 50Hz
Description

ASTM D202 Inclined Surface Coefficient of Friction Tester Static COF Tester

1. Use
Inclined Surface Coefficient of Friction is specifically designed for the determination of the static friction coefficient of materials such as paper, cardboard, plastic film, thin plate, and conveyor belt. By testing the friction performance of the materials, the opening performance of the packaging, the packaging speed of the packaging machine and other indicators can be controlled to meet the production requirements.


2. Character
1. This instrument is specifically designed for the determination of the static friction coefficient of inclined plane specimens
2. The free variable angular velocity and automatic plane reset functions support the combination of non-standard test conditions
3. The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
4. The instrument is controlled by a microcomputer, features a liquid crystal display, a PVC operation panel and a menu interface, making it convenient for customers to conduct tests or view test data
5. It is equipped with a micro printer and an RS232 interface, facilitating connection to a PC and data transmission

Standards
ASTM D202, ASTM D4918, TAPPI T815

3. Applications Specifications

Basic Applications Films
Including plastic films and sheets, e.g. PE, PP, PET, single or multi-layer composite films and other packaging materials for food and drugs
Paper and Paperboard
Including paper and paper board, e.g. various paper and composite printing products of paper, aluminum and plastic
Extended Applications Aluminum and Silicon Sheets
Including aluminum sheets and silicon sheets
Textiles and Nonwovens
Including textiles and nonwovens, e.g. woven bags

4. Technical Specifications

Specifications LR-F055B
Angle Range 0° ~ 85°
Accuracy 0.01°
Angular Velocity 0.1°/s ~ 10.0°/s
Specifications of Sled 1300 g (standard)
235 g (optional)
200 g (optional)
Customization is available for other masses
Ambient Conditions Temperature: 23±2°C
Humidity: 20%RH ~ 70%RH
Instrument Dimension 440 mm (L) x 305 mm (W) x 200 mm (H)
Power Supply AC 220V 50Hz
Net Weight 20 kg
