Component Rupture Tester Impact Resistance Tester For Tempered Glass
Component Rupture Tester Impact Resistance Tester For Tempered Glass
Component Rupture Tester Impact Resistance Tester For Tempered Glass
Component Rupture Tester Impact Resistance Tester For Tempered Glass
Specifications
Brand Name :
Lonroy
Model Number :
LR-V3
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
warranty :
1 year
power :
220v
Price :
Negotaible
Description

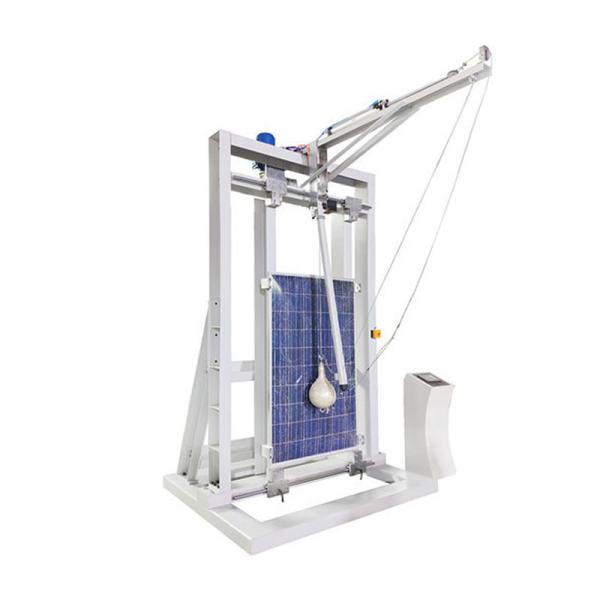

Component Rupture Tester Impact Resistance of Tempered Glass
1.Component rupture test machine purpose: Use a certain mass of heavy objects to hit the surface of the component to obtain the component's ability to resist heavy object impact.
Component rupture test machine applicable standards: IEC61730-2004 standard requirements

2.Technical specifications

Impact height 300mm~1220mm
Test frame
Inner edge size of sample frame can be based on customer component size requirements
Rubber strip with thickness 3mm, width of 15mm and hardness of Shore A50° is installed on the sample frame
Guardrails are installed on both sides
Impact bag
The mass of the impact bag 45.5 ± 0.5kg
Filled with lead balls with a diameter 2.5-3.0mm
In addition, the following two conditions are met
Provide motor working voltage 220V power supply
Compressed air 3-5kg
