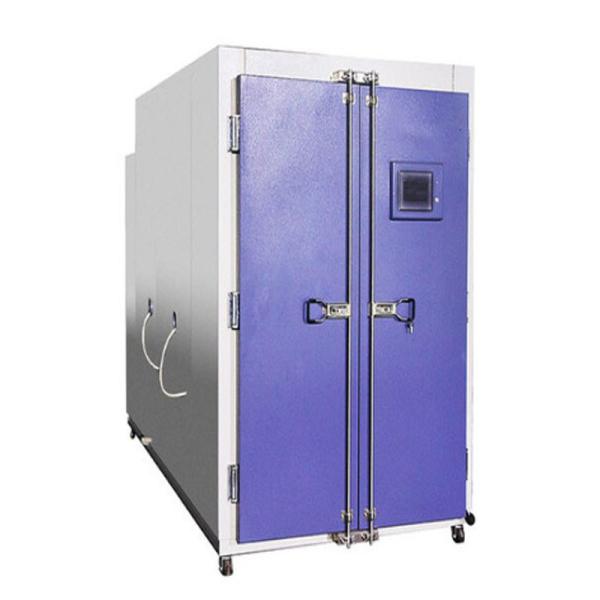

IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester
IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester
Specifications
Brand Name :
LONROY
Model Number :
LR-E01
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
wooden pa'ka'ge
Description

IEC 61215 ultraviolet aging test chamber photovoltaic module testing machine solar panel testing machine
1. Product description
Uv pretreatment tester Uses: The UV aging tester of photovoltaic modules simulates the damage caused by ultraviolet rays in sunlight on components exposed outdoors for a long time. The device takes only a few days or weeks to reproduce the UV-aging resistance properties of the module-related materials that would take months or years outdoors.
Applicable standard ultraviolet aging test chamber: IEC 61215, IEC 61646 standard requirements

Materials used high-quality materials that can completely block ultraviolet rays, have good sealing and thermal insulation properties
Total UV irradiation
area of the equipment
 greater than 2000mm×2000mm, meeting the requirements for testing two 2m×1m components at the same time
Light source life
 The system uses a single set of xenon lamps with a life of about 1000 hours. A set of spare parts is provided when the equipment is delivered, with a service life of more than 2000 hours.
Relative energy ratio of single lamp UVA and UVB
 UVB accounts for about 3% to 10% of the total energy
Irradiation intensity
 The irradiation intensity of the wavelength of 280nm to 385nm can reach about 100W/m², 280nm to 320nm <=10%, ensuring that the test cycle is shortened as much as possible
Irradiation uniformity better than ±15%
Real-time monitoring and display of UVA and UVB intensity
One UVA (320nm to 385nm) and one UVB (280nm to 320nm) fiber optic probe
Component surface temperature
 60ºC±5ºC
Temperature resolution
 0.1ºC
Ozone
 Almost no ozone is generated
Lighting method
 top lighting, the component test plane is perpendicular to the light source
Touch screen control and real-time monitoring, automatically cut off the light source when the set value is reached
Real-time graphical display of component surface temperature, measurement accuracy ±0.1ºC
