Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
MOQ :
1
Power Accuracy :
±0.5%
Protection Class :
IP56
Voltage :
220 V
Equipment Dimensions :
1330mm × 750mm × 900mm
Power Supply :
AC 220V
Slit Opening Width :
20mm
Slit-Light Distance :
100mm
Light Source :
Iodine-tungsten lamp
Light Power :
1000W
Description

Side Light Detector Float Glass Surface Detecting Machine Float Glass Quality Inspection Equipment

Product Description

I. Function

The LR-A336 side light detector is designed in accordance with the national standard GB11614-2009 "Float Glass". It is a device used for detecting surface defects of float glass. When used in conjunction with an appearance inspection instrument, it can measure the quantity and size of various defects on float glass. It is an essential quality inspection equipment for float glass manufacturing enterprises.

II. Principle

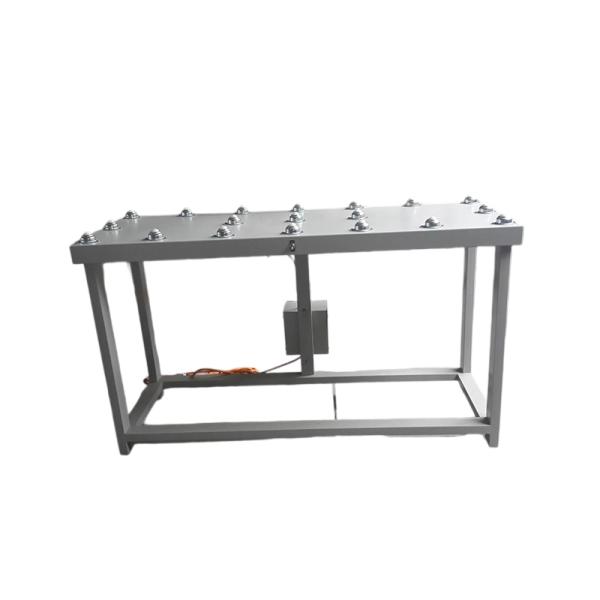

The LR-A336 side light detector is equipped with iodine-tungsten lamps in a sealed light box. There is an opening slit on the light box. The glass is inserted horizontally into the slit and runs forward. Light enters the glass through the glass section. Due to the diffusion of light by various defects on the glass, the defects appear as bright spots on the glass surface. The positions of these bright spots are recorded. The types and sizes of the defects are then detected using an appearance inspection instrument and a reading microscope.


Side Light Detector Float Glass Surface Detecting Machine Float Glass Quality Inspection Equipment

Technical Specification

Light Source & Power

Light source: Iodine-tungsten lamp; Power: 1000W

Maximum Width of Slit Opening

20mm

Distance Between Slit and Light Source

100mm

Equipment Dimensions

1330mm × 750mm × 900mm

Power Supply

AC 220V
