Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Model Number :
KY-232-4P-2000
MOQ :
1
Detection method :
Leakage testing of open products (air pressure attenuation)
Test pressure unit :
kPa
Test pressure range :
±9999.99
Leakage display unit :
Pa
Leakage display range :
±999.999
Time range :
0.1(S)~1999.0(S)
Channel count :
8(1~8CH)
I/O Interface :
5 input signals / 6 output signals
USB Interface :
1 pc
RS485 Interface :
1 pc (Optional)
Connecting piping :
Outside diameter 6 mm pu tube
Power supply :
DC24V ±5%
Power consumption :
40W
Dimensions :
D400*W210*H295(mm)
Weight :
about 10kg
Description

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester

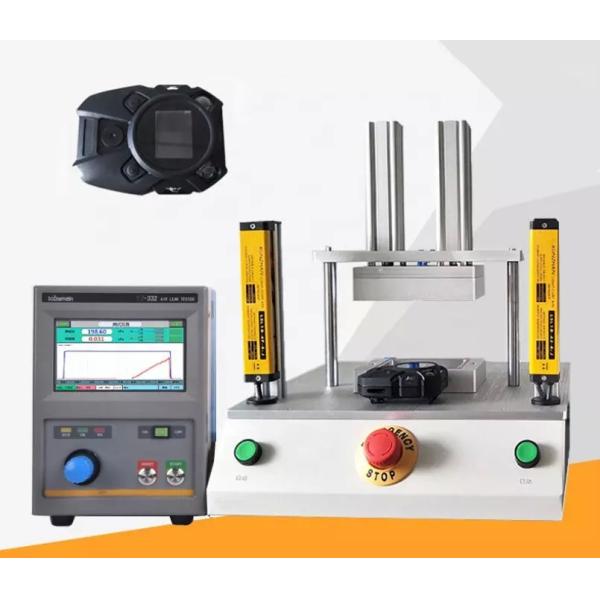

KY-232-4P series 4-channel air tightness tester adopts the principle of direct pressure, with air as the medium for leak detection of products, is a nondestructive testing instrument. The working principle is to inflate the test product to the specified air pressure, and then close the valve. After a period of stability, the change of air pressure during the detection period is measured, and the leakage amount is calculated by conversion. This instrument is widely used in the sealing test of parts of open products with its high precision and complete functions.

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester

Functional Features

1. 7-inch touchscreen display that switches between Chinese and English

2. High resolution 24-bit pressure-to-digital converter

3.2 to 4 channels independent ports, synchronous testing

4. Opens a product test mode

5.Large leak, small leak 2 section alarm function

6.XY axis plot shows the test pressure and leakage amount recorded

7. Tests a unit of pressure in kPa

8.Measure of leakage in Pa

9.8 Groups of channel parameters are saved and programs can be switched externally

10.USB flash drive history is stored, which can be queried, printed, deleted, and captured

11.PLC input-output I/O interface, which connects to automation equipment

12.RS485 communication port (optional)

13. Mini-printer interface (optional)

Application Area

Automobile industry, aerospace industry, home appliance industry, medical industry, bathroom industry, packaging industry, new energy industry

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester

Technical specification

Detection method

Leakage testing of open products (air pressure attenuation)

Test pressure display

Unit: kPa

Display Range:±9999.99

Display of leakage

Unit:Pa

Display Range:±999.999

time

0.1(S)~1999.0(S)

channel

8(1~8CH)

I/O Interface

5 input signals / 6 output signals

USB Interface

1 pc

RS485 Interface

1 pc( Optional)

Connecting piping

Outside diameter 6 mm pu tube

power supply

DC24V ±5%,

Power Consumption

40W

size

D400*W210*H295(mm)

Weight

about 10kg

Test gas source

0.4MPa to 1.0MPa clean and dry compressed air source

Temperature/Humidity

The operating temperature is 5~40℃. Below 80%HR, no condensation

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester

Model selection KY-232-4P-ABCE For instance :KY-232-4P-2000

Choose items

Mark

Description

KY-232

Series

KY-232

Direct pressure type air tightness tester

P

Basic gas path

2P

2 channel (open product) air pressure detection air path

3P

3 channel (open product) air pressure detection air path

4P

4 channel (open product) air pressure detection air path

A

Test pressure

1

Mechanical pressure regulating valve 2kPa ~ 20kPa (leakage resolution 0.001kPa)

2

Mechanical pressure regulating valve 5kPa ~ 100kPa (leakage resolution 0.001kPa)

3

Mechanical pressure regulating valve 10kPa ~ 400kPa (leakage resolution 0.001kPa)

4

Mechanical pressure regulating valve 50kPa ~ 900kPa (leakage resolution 0.002kPa)

5

Electronic pressure regulating valve 5kPa ~ 100kPa (leakage resolution 0.001kPa)

6

Electronic pressure regulating valve 10kPa ~ 400kPa (leakage resolution 0.001kPa)

7

Electronic pressure regulating valve 50kPa ~ 900kPa (leakage resolution 0.002kPa)

8

Mechanical pressure regulating valve 100kPa ~ 2000kPa (leakage resolution 0.005kPa)

B

Test volume measurement

0

No test product volume test function

1

Has the test product volume test function

C

RS485 Communication Interface

0

No RS485 communication Interface

1

Has RS485 communication

E

Micro printer interface

0

No microprinter interface

1

Has a micro printer interface

Optional Accessories

1

USB

4

External pressurizing device

2

5

Standard leak

3

Miniprinter

6

Product seal test fixture
