Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Model Number :
LR--207
MOQ :
1
Test station :
click and underline 2 each
Table size :
750mm x 350mm
Stroke range :
click 50mm and underline 0mm-60mm
Test power :
step motor
Test head :
Chinese pencil with teflon or HB standard hardness
Motion mode :
speed regulating motor
Test speed :
0.25-2 seconds/time
Marking rods :
2
Click strokes :
2
Shutdown mechanism :
automatic with preset measurement times
Measurement times :
0~10 million times
Test type :
point touch screen, write life test
Pressure type :
double head pressure
Speed adjustable :
yes
Stroke adjustable :
yes
Description

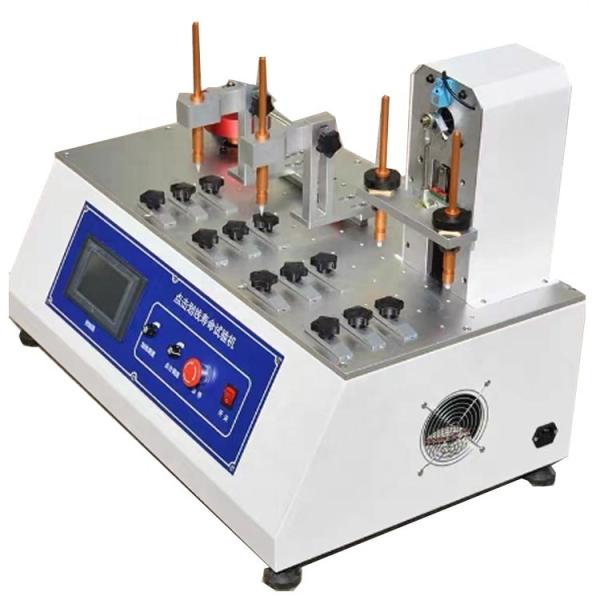

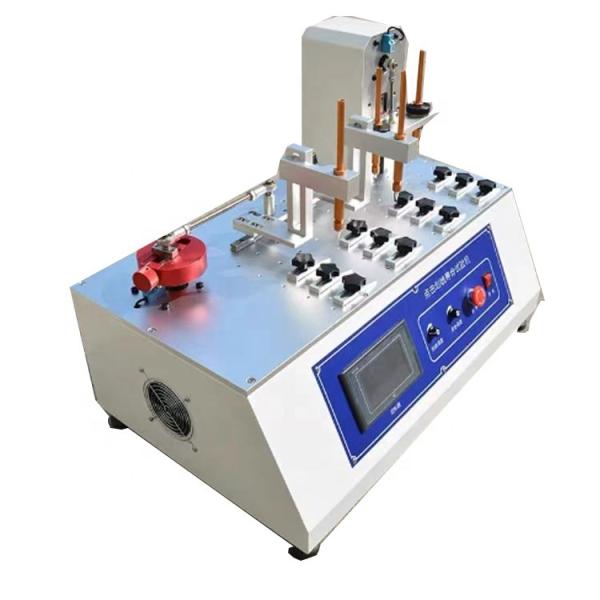

Click line life test machine/mobile phone touched screen click mark lineation life test machine

Use

Click line life test machine/mobile phone touched screen click mark lineation life test machine is used to point touch screen, and write life test equipment, the machine adopts mechanical structure drives the weight standard constant pressure, the simulation of product point, written test, life will also test head to switch to the HB pencil hardness test was carried out on the product of shell, the surface of the rubber hardness testing, test project of the spray paint hardness test, paint adhesion test.This machine is equipped with double head pressure, adjustable speed, adjustable stroke, stop number, etc.

Click line life test machine/mobile phone touched screen click mark lineation life test machine

Main technical parameters

Test station: click and underline 2 each

Table size: 750mm 350mm

Stroke range: click 50mm and underline 0mm-60mm

Test power: step motor

Test head: Chinese pencil with teflon or HB standard hardness

Motion mode: speed regulating motor

Test speed range: 0.25-2 seconds/time

Two marking rods

Click on 2 strokes

Automatic shutdown with preset measurement times: 0~10 million times
