LR-F022-C Small Cell Phone Drop Tester/ Drop Testing Machine / Drop test Equipment
LR-F022-C Small Cell Phone Drop Tester/ Drop Testing Machine / Drop test Equipment
LR-F022-C Small Cell Phone Drop Tester/ Drop Testing Machine / Drop test Equipment
LR-F022-C Small Cell Phone Drop Tester/ Drop Testing Machine / Drop test Equipment
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Model Number :
LR-F022-C
MOQ :
1
Drop angles :
0°, 45°, 90°
Drop height indicator :
1cm
Effective drop height :
300-1800mm (optional: 2000mm)
Max weight capacity :
2kg
Floor medium :
steel plate
Drop range :
500x600mm
Gas source pressure :
≥0.5Mpa
Machine dimensions :
800x900x2200mm
Power supply :
AC220V 50HZ 5A
Drop mechanism :
vacuum adsorption
Height adjustment :
manual rise/fall
Impact measurement :
acceleration & speed
Test object types :
mobile phone, PDA, CD, MP3, etc.
Test method :
original posture & acceleration drop
Height setting :
programmable
Description

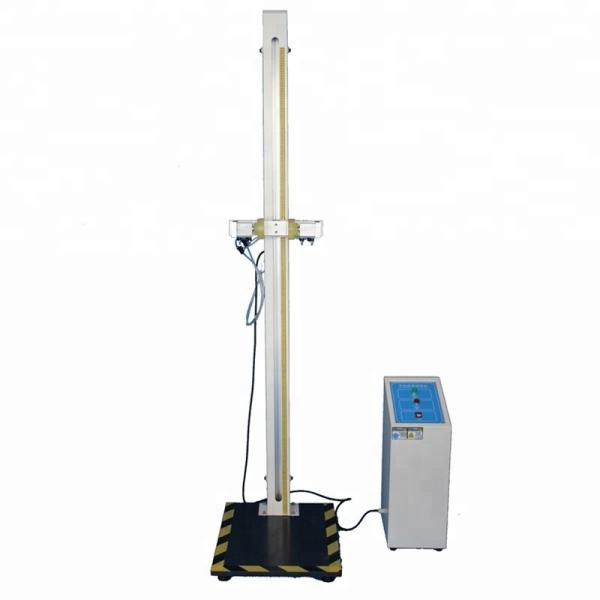

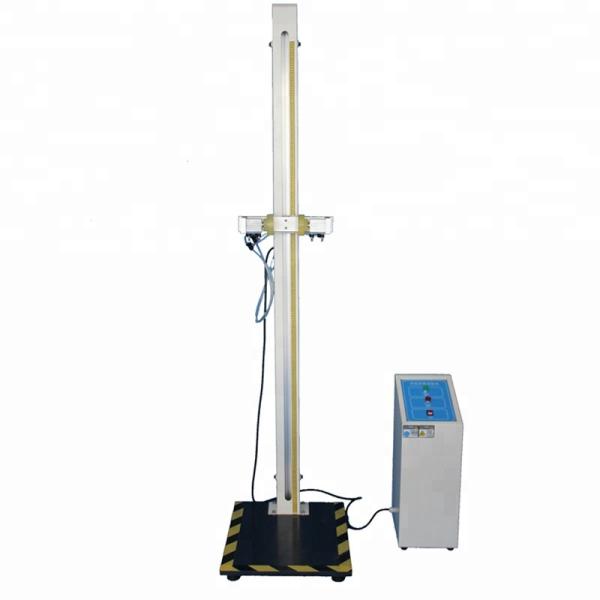

LR-F022-C Small Cell Phone Drop Tester/ drop testing machine / drop test equipment

Use

The machine is designed to assess the impact of falling behind on the performance of the product when the product is used in the experiment. It is applicable to: mobile phone, PDA, telephone electronic dictionary, CD, MP3,bottle and other small consumer electronic products for original posture and acceleration drop test.

Power: vacuum adsorption fall, height of fall can be set, manual rise and fall, accurate impact position, measurement of acceleration and speed.

LR-F022-C Small Cell Phone Drop Tester/ drop testing machine / drop test equipment

Technical specification

Multi-angle drop device

0 °, 45 ° and 90 °

Drop height indicator

1cm

Effective height of drop

300 -- 1800mm(optional: 2000mm)

Maximum weight allowed

2kg

Falling floor medium

steel plate

Drop range

500x600mm

Use gas source

more than 0.5Mpa

Machine size

W800XD900XH2200mm

Electrical source

AC220V 50HZ 5A
