Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
MOQ :
1
Power :
300 W
Voltage :
220 V
Protection Class :
IP66
Counter :
6 bits (built-in)
Twist Frequency :
1-30 times/min (keeping time adjustable)
Torque :
1 ~ 4 N.m (adjustable)
Number of Stations :
1 / set
Operation Mode :
Manual and automatic switching
Actuator :
Servo Motor
Control Type :
PLC control
Display Type :
Large touch screen
Test Mode :
Clamshell phone testing
Torque Control :
High accuracy, real-time display
Noise Level :
Low
Description

LR-345 Mobile Phone Torsion Test Machine Phone Torsion Testing Equipment Mobile Phone Twist Bending Tester

LR-345 Mobile Phone Torsion Test Machine Phone Torsion Testing Equipment Mobile Phone Twist Bending Tester

Overview

1.A device for testing the anti-distortion performance of a mobile phone.

2.High accuracy of torque control, real-time display of torque value, automatic control to maintain torque.

3.Reasonable structure design, unique, suitable for different types of mobile phones.

4.Stable operation, low noise, maintenance free.

LR-345 Mobile Phone Torsion Test Machine Phone Torsion Testing Equipment Mobile Phone Twist Bending Tester

Test purposes

1. Durability of phone case.

2. Anti-distortion performance of internal structure.

3.Test procedure description

The experiment simulated the distorted action of the mobile phone during the user's use.

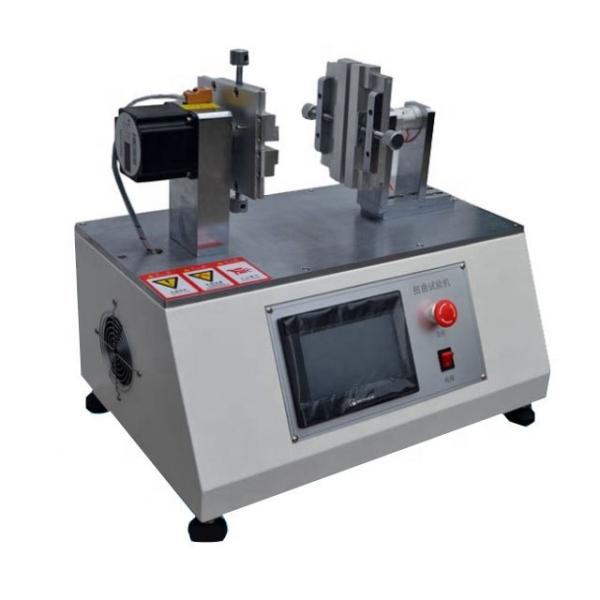

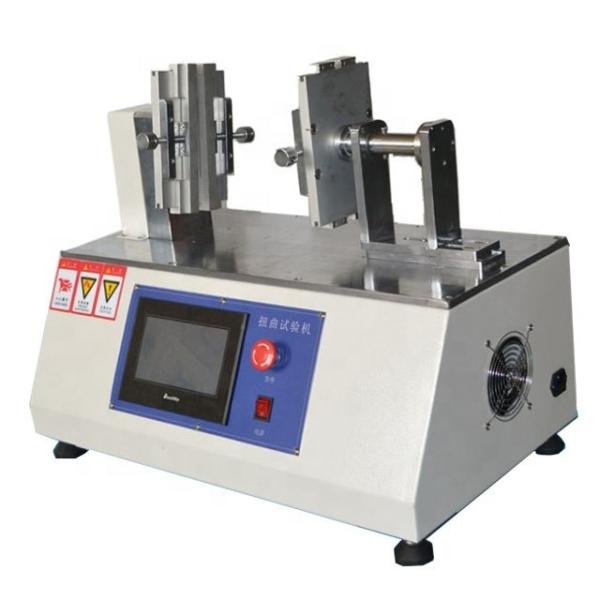

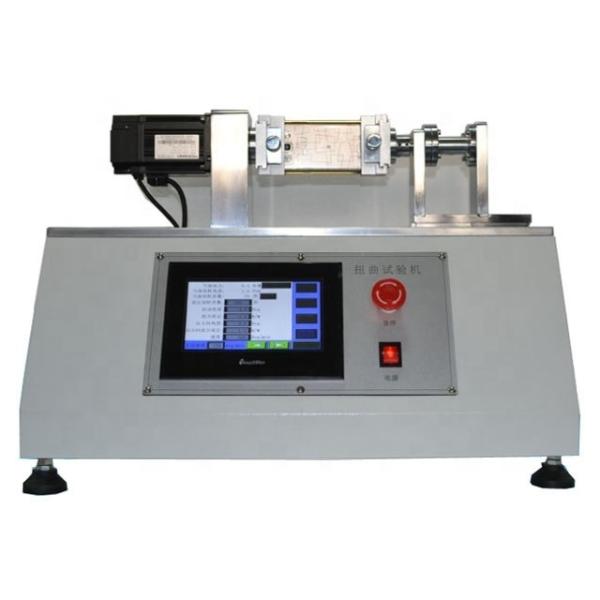

One end of the length direction of the mobile phone is fixed in the bending fixture, and the other end is floating in the fixing fixture. To start the testing machine and set the torque value, the servo motor drives the bending fixture to rotate forward and backward. The touch screen displays the forward and backward torque value in real time.

Function implementation

1. Actualize the servo motor;PLC control.

2. Large touch screen interface control.

3. Manual and automatic switching.

4.The clamshell mobile phone can be opened to test the state.

Main technical parameters

Number of Stations

1 / set

Operation Mode

Touch Screen

Actuator

Servo Motor

Torque

1 ~ 4 N.m (Adjustable)

Twist Frequency (Beat)

1 - 30 times/min (Keeping Time Adjustable)

Counter

6 Bits (Built-in)

Voltage; Power

Voltage: 220V; Power: 300W
