Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Protection Class :
IP56
Voltage :
220 V, 380 V
Grading :
1W,2W,5W...to 1000KW
Load accuracy :
Resistance ±3%
Rated voltage :
DC24V, 28V, 30V... up to 1000V
Environmental temperature :
-20°C ~ +55°C
Cooling method :
Strong fan air-cooling
Load type :
Resistive load
Load control :
Local manual + remote automatic
Load protection :
High-temperature, fan, emergency stop, heat dissipation, short-circuit, overcurrent
Electrical parameter measurement :
Displays current and voltage, uploads data
Power output :
Segmented control
Display :
External liquid crystal
Parallel capability :
Multiple devices in parallel
Material :
Electrical components
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

DC Load Box High Reliability Switches Aging Experiment Performance Testing Machine Contactor Daily Maintenance Tester

Product Description

Introduction

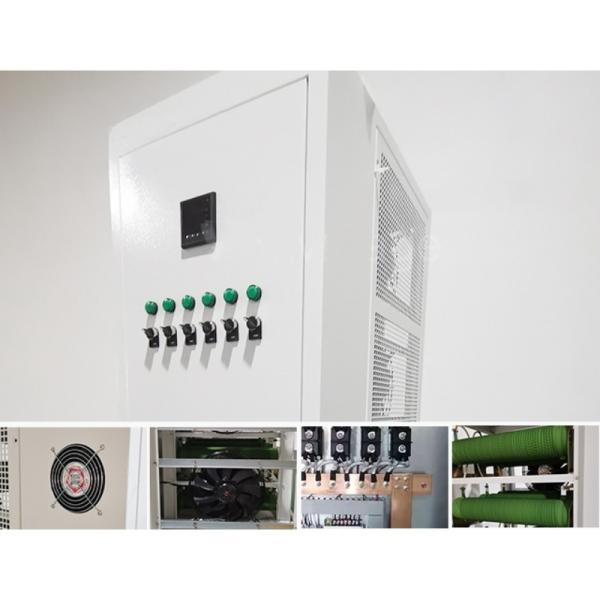

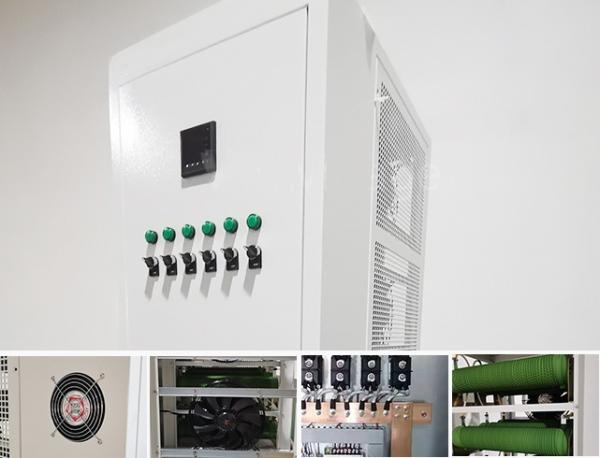

The DC load box is applied in the daily maintenance tests, project acceptance and factory inspection tests of various generators and UPS power supplies. At the same time, it can assist in completing the performance tests and aging experiments of various switches and contactors. The load box is designed innovatively, with strong functions, small size, and high reliability. The digital display is clear, the operation is simple, and the intelligence level is high. After parameter setting, it automatically controls constant current to complete the capacity test of the battery group. The power consumption part adopts electrical components produced by our own intellectual property rights, with large power, no open flame, safety and long service life.

Advantage

It is equipped with a pure resistive load. The power output is controlled in a segmented manner, allowing for various combinations to simulate different power loads. This enables it to operate more stably without any overheating or discoloration. It is equipped with a forced cooling fan and self-protection functions to prevent overheating and burning out in case of fan failure. It adopts a modular structure, making the operation simple and maintenance convenient. An external liquid crystal display is provided, allowing real-time monitoring and control of parameters such as power, voltage, and current. This facilitates users to view and record the data. In the future, multiple devices can be used in parallel to meet the basic requirements for large current applications.


DC Load Box High Reliability Switches Aging Experiment Performance Testing Machine Contactor Daily Maintenance Tester

Technical Specification

Grading

1W,2W,5W….to 1000KW

Load accuracy

Resistance ±3%

Electrical parameter measurement

It can display the current and voltage of each group of loads locally, and upload the data to the upper computer.

Cooling method

Strong fan air-cooling, with standard upward air outlet.

Load type

Resistive load

Rated voltage

DC24V, 28V, 30V... up to 1000V

Load control method

Local manual control + remote automatic control

Load protection

High-temperature protection, fan protection, emergency stop protection, heat dissipation protection, short-circuit protection, overcurrent protection

Environmental temperature

-20°C ~ +55°C
