Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Stop face diameter :
125mm
Tip to stop distance :
100mm
Nodular finger length :
100mm
First finger length :
30mm
Middle finger length :
30mm
Last finger length :
40mm
Dam-board diameter :
125mm
Test thrust :
30 ± 3N
Handle material :
Nylon
Stop face material :
Nylon
Finger material :
Stainless steel
Baffle entry limit :
20mm-50mm
Compliance standard :
IEC 61032
Precision machining :
Yes
Integral palm simulator :
Yes
Certification :
ISO ASTM CE
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

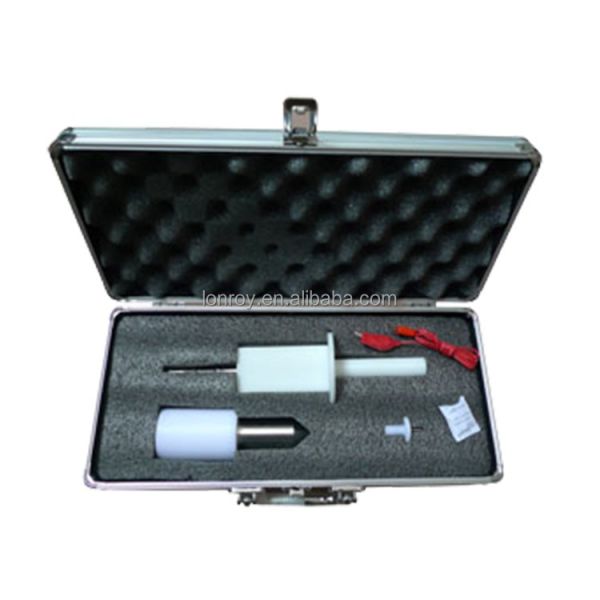

IEC 61032 Test Finger Probe IEC 60065 EN Testing Pointer Sensor Lab Probe
The IEC 61032 Test Finger Probe is an essential tool for protection against electric shock testing in household and similar electrical appliances. Manufactured to exacting standards, this precision instrument ensures compliance with international safety regulations.
Key Features
  • Compliant with IEC 61032, IEC 60065, and EN Standards
  • Essential appliance for electric shock prevention testing
  • Features a circular stop face with 125mm diameter
  • 100mm distance between tip and stop face
  • International standard test finger required by most IEC and UL standards
  • Constructed with precision-machined stainless steel finger and nylon handle/stop face
  • Includes integral palm simulator
Usage Instructions
  • The joint portion must not touch live or hazardous parts and cannot enter 20mm-50mm baffles
  • Test B requires 30 ± 3N thrust (typically used with force gauge)
  • For electric shock testing: requires wiring and power supply (mains) configuration with lamp unit
Note: This precision stainless steel test probe requires careful handling and regular maintenance to ensure optimal performance.
Technical Specifications
Parameter Measurement
Nodular Finger Length 100mm
The First Finger Length 30mm
The Middle Finger Length 30mm
The Last Finger Length 40mm
Dam-board Diameter 125mm
Compliance Standards
IEC61032, IEC60065, IEC60335-1, IEC60884-1
