IEC 60068 0.2J Spring Impact Hammer Small Meter Testing Equipment
IEC 60068 0.2J Spring Impact Hammer Small Meter Testing Equipment
IEC 60068 0.2J Spring Impact Hammer Small Meter Testing Equipment
IEC 60068 0.2J Spring Impact Hammer Small Meter Testing Equipment
Specifications
Brand Name :
Lonroy
Place of Origin :
China
Model Number :
0.2J
MOQ :
1
Price :
Negotaible
Length :
211mm
Weight :
1250g
OD :
50mm
Hammer Weight :
60g
Hammer Radius :
10mm
Release Force :
<10N
Impact Components :
250g
Hammer Material :
Polyethylene imine
Impact Energy 0.14J :
±0.014J
Impact Energy 0.20J :
±0.020J
Impact Energy 0.35J :
±0.03J
Impact Energy 0.50J :
±0.04J
Impact Energy 0.70J :
±0.05J
Impact Energy 1.00J :
±0.05J
Impact Energy 1.50J :
±0.07J
Certification :
ISO ASTM CE
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

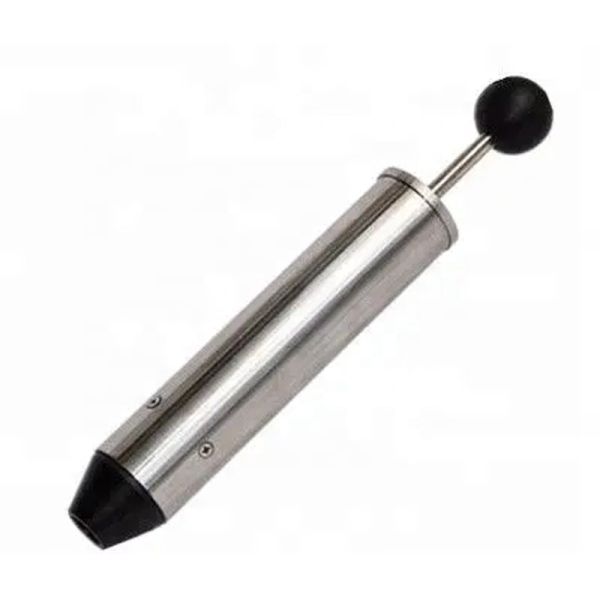

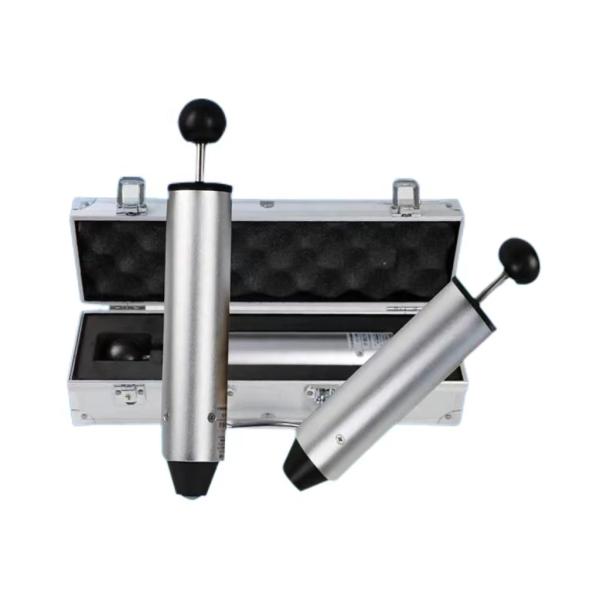

IEC 60068 0.2J Spring Impact Hammer
The IEC 60068-2-75 Spring Impact Hammer is designed to test the mechanical durability of luminaires, enclosures for electrical appliances, and other electronic products. This instrument simulates mechanical impacts to evaluate the resistance of household and similar electrical appliance components including shells, levers, handles, knobs, and light fixtures.
Key Features
  • CNAS & ILAC certified
  • Complies with IK standard for spring impact hammers
  • Available with customized energy levels
  • Includes spring impact hammer calibrator and calibration apparatus
Technical Specifications
Length 211mm
Weight 1250g
OD 50mm
Hammer Weight 60g
Hammer Radius 10mm
Release Force of Impact <10N
Impact Components Includes hit ball handle the hammer (250g weight)
Hammer Head Material White polyethylene imine
Impact Energy Specifications
Single Impact Energy Error
0.14J ±0.014J
0.20J ±0.020J
0.35J ±0.03J
0.50J ±0.04J
0.70J ±0.05J
1.00J ±0.05J
1.50J ±0.07J
2.00J ±0.08J
Product Images
