Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Hammer weight :
210g±1g
Hammer material :
45 steel
Hardness level :
HS40 or above
Vertical height :
300mm±1mm
Hammer handle material :
Oak
Base plate dimensions :
250x250x15mm
Base plate feature :
Horizontal bubble
Strike interval :
4mm
Minimum strike distance :
10mm from edges
Protection class :
IP65
Voltage :
220 V
Test standard :
GB/T2694-2010, YDT757
Strike points :
5 parallel points
Hammer orientation :
Perpendicular to base
Test method :
Free fall hammer
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

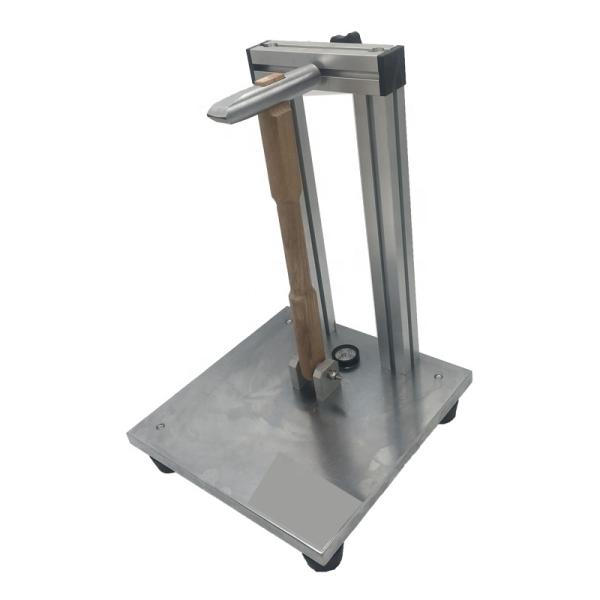

Galvanized Layer Hammer Adhesion Testing Machine
Zinc Coating Adhesion Hammering Tester
This professional testing machine evaluates the adhesion quality of hot-dip galvanized coatings through precise hammer impact testing, ensuring compliance with industry standards.
Product Introduction
  • Conforms to GB/T2694-2010 and YDT757 standards for drop hammer testing
  • Evaluates galvanized layer adhesion quality through controlled hammer impacts
  • Essential for quality control in tower manufacturing and inspection departments
Operation Method
Level the device using the built-in bubble level
Position samples with striking points ≥10mm from edges
Align hammer handle perpendicular to base for free-fall impact
Perform 5 parallel strikes at 4mm intervals
Inspect galvanized layer surface condition without repeating strikes
Maintenance
Unit features rust-proof treatment - protect from dust and moisture
Maintain smooth contact surfaces on all support components
Technical Specifications
Component Specification
Hammer Weight 210g±1g, 45 steel, hardened to HS40 or above
Drop Height 300mm±1mm from hammer head center to base
Hammer Handle Premium oak construction
Base Plate 250x250x15mm with integrated leveling bubble
