IEC 60598 IP3X Test Probe Test Rod High Precision Inspection Probe IEC 60529 Potable Testing Probe
Product Description

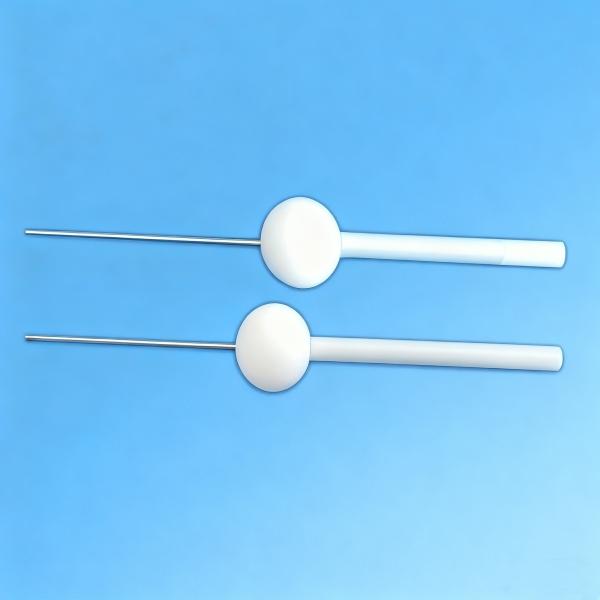

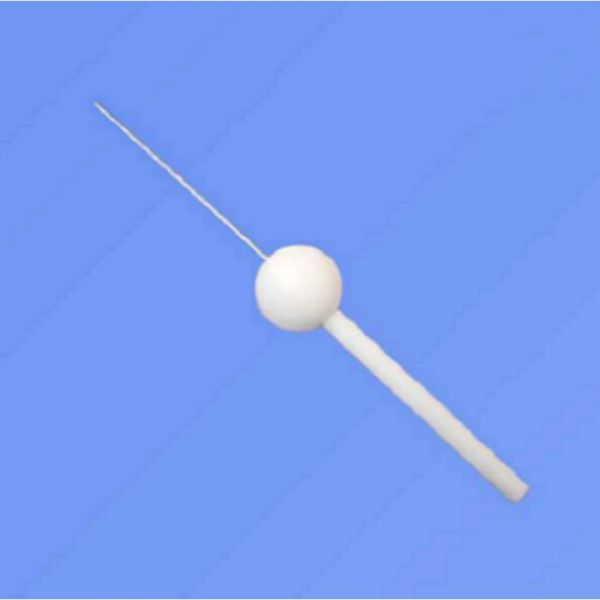

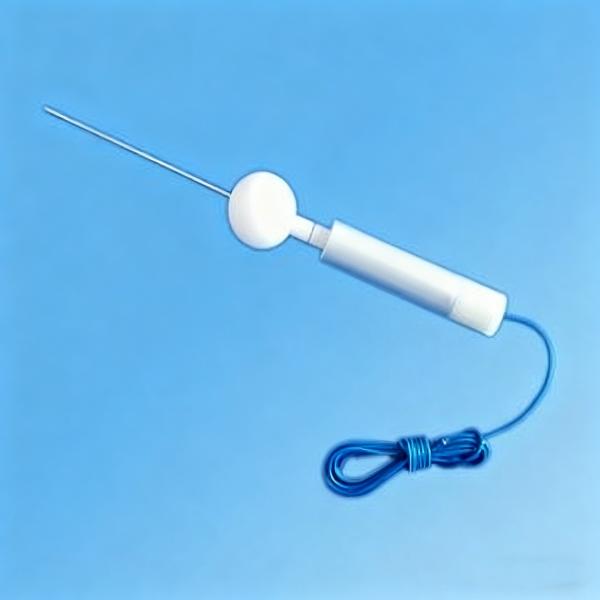

The IP3X test probe is designed for protective inspection to prevent direct contact with handheld tools. This high-precision inspection probe can be customized with a 3 ± 0.3N pushing force for accurate testing applications.
Compliance Standards
- IEC61032 Figure 2 test fixture C
- IEC60529 IP3
- GB4208 IP3
- GB/T16842 test fixture C
- GB8898
- IEC60065
- IEC60598
- GB7000
Technical Specifications
| Specification |
Measurement |
| Probe length |
100mm |
| Probe diameter |
2.5mm |
| Ball diameter |
35mm |
| Handle diameter |
10mm |
| Handle length |
100mm |
