Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Thermostatic Electronic Liquid Densitometer Small Meter Testing Equipment
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Model Number :
XF-MD01
MOQ :
1
Density range :
0 ~ 1.999g/cm3
Density accuracy :
±0.001g/cm3
Sampling capacity :
2ml
Ambient temperature :
5℃ ~ 35℃
Temperature control :
20±0.1℃
Data storage :
80 sets
Power supply :
220V±22V, 50Hz±1Hz
Power consumption :
50VA
Calibration method :
Pure water at 20℃
Interface :
232 interface
Measurement principle :
Oscillation frequency
Sample volume :
2ml
Display :
Density value at 20℃
Automatic sampling :
Peristaltic pump
Temperature display :
Yes
Description

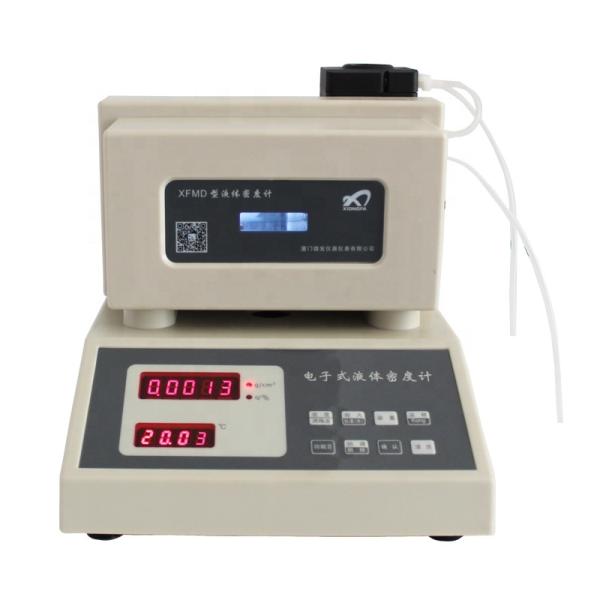

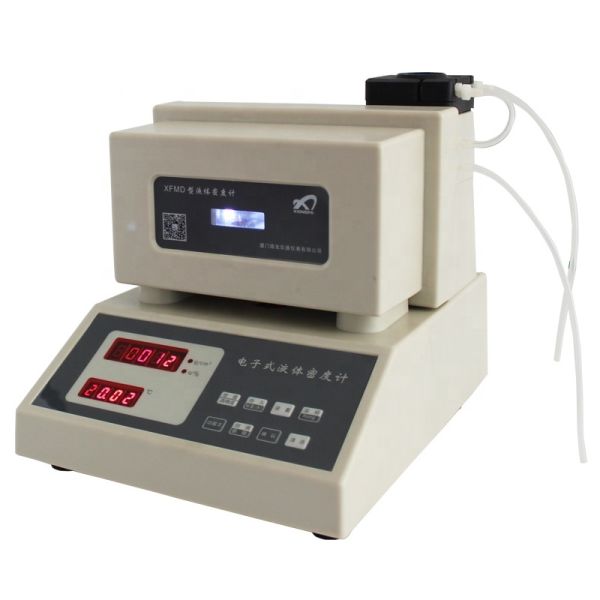

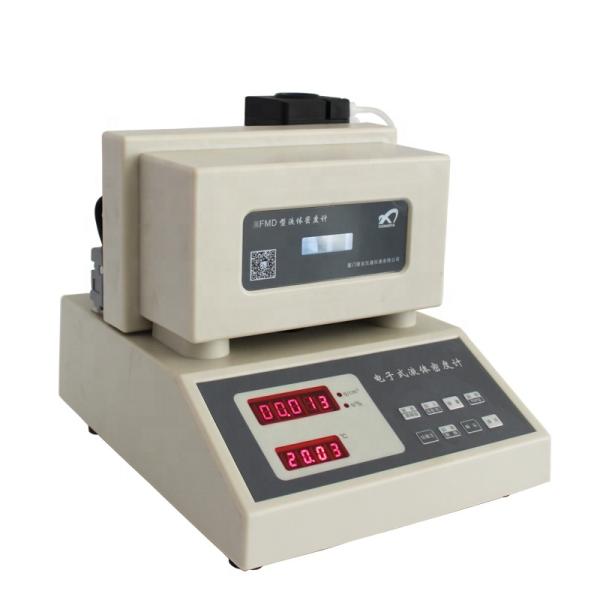

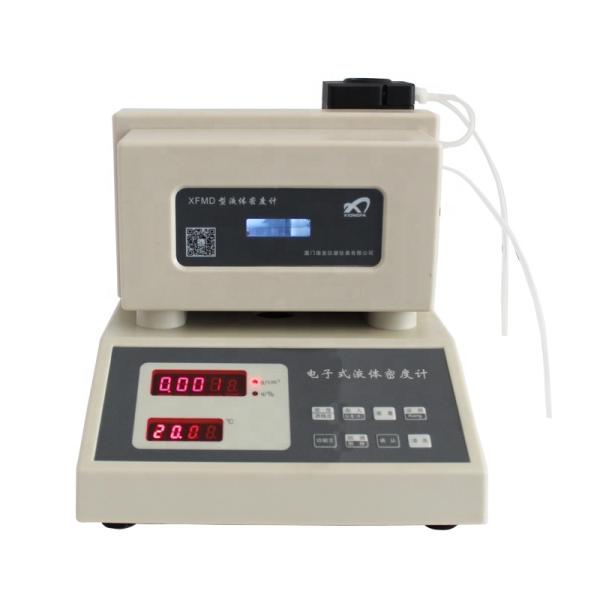

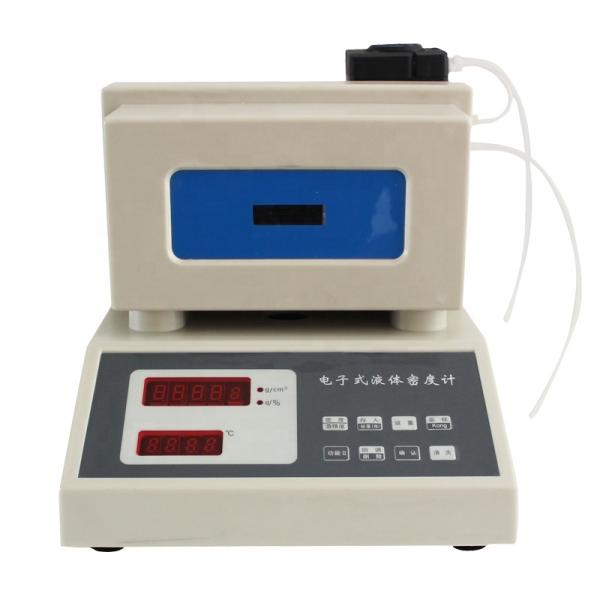

Thermostatic Electronic Liquid Densitometer
The Thermostatic Electronic Liquid Densitometer is designed for precise liquid density measurement across various industries including biochemical, pharmaceutical, chemical, oil refining, environmental protection, food processing, and academic laboratories. It complies with multiple international standards including GB/T29617, ISO12185, ASTM D4052/D5002, and others.
Measurement Principle
The instrument operates based on the principle that the oscillation frequency changes when the double U tube is filled with different media. The liquid sample is pumped into the resonant cylinder sensor, with data processed by a microcontroller for fast, direct, and highly sensitive measurements.
Main Technical Parameters
Instrument Type Density Measurement Range Density Accuracy
Xf-md01 0 ~ 1.999g/cm³ ±0.001g/cm³
Xf-md08 0 ~ 1.9999g/cm³ ±0.0008g/cm³
Xf-md05 0 ~ 1.9999g/cm³ ±0.0005g/cm³
  • Sampling capacity: Approximately 2ml per injection (automatic or manual)
  • Ambient temperature: 5℃ ~ 35℃
  • Temperature control: Maintains sample at 20±0.1℃
  • Data storage: Up to 80 sets of density or concentration values
  • Power supply: 220V±22V, 50Hz±1Hz, 50VA
  • Automatic calibration using pure water at 20℃
  • Automatic cleaning function
Key Features
  • Precise temperature control with sealed sensor and sample in constant temperature tank
  • Direct display of liquid density at 20℃ with temperature readout
  • Automated sampling via microcontroller-controlled peristaltic pump
  • Data storage (80 sets) with optional computer interface via RS232
  • Calibration function using 20℃ pure water standard
Product Advantages:
  • Wide measuring range: 0~1999.99kg/m³
  • Minimal error factors for improved accuracy
  • Reduced workload with automatic functions
  • Minimal sample requirement (2ml per test)
  • High automation with peristaltic pump injection and self-calibration
  • Exceptional value compared to similar foreign products
Operation Procedure
Insert the inlet tube into the sample, press the "sample" button, and the sample will be drawn into the vibrator by the inlet pump. After temperature stabilization, the liquid density will be displayed directly.
