Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge
Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge
Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge
Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge
Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge
Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge
Specifications
Brand Name :
Lonroy
Model Number :
LR-A097
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Rotational Speed :
6rpm
Horizontal Movement Mode :
Electric
Sensor Type :
Inductive
Warranty :
1year
Sensor Measuring Range :
±500μm
Sensor Resolution :
0.001μm
Description

Large-load Automatic Self-aligning And Leveling Roundness Measuring Instrument Cylindrical Gauge

Description

Stability is the core foundation of all measurements.

Without stability, any measurement is meaningless.

The large-load automatic self-aligning and leveling cylindrical gauge is designed for stable measurement. The integrated body, large-load main shaft, heavy-duty automatic adjustment platform and other core components are all designed with a surplus rigidity of over 300% for purposeful rigidity. The high rigidity of the entire machine components is the basis for achieving long-term stable measurement.

In addition to being capable of stable measurement of precise small parts, due to the high rigidity design of the entire machine frame and functional components, it can also handle large-sized parts such as spindle sleeves, shaft cores, gear shafts, crankshafts, and other long-axis parts.

Equipped with the advanced RSP automatic measurement software, it liberates the operators and makes the complex measurements extremely simple.


Technical Parameters

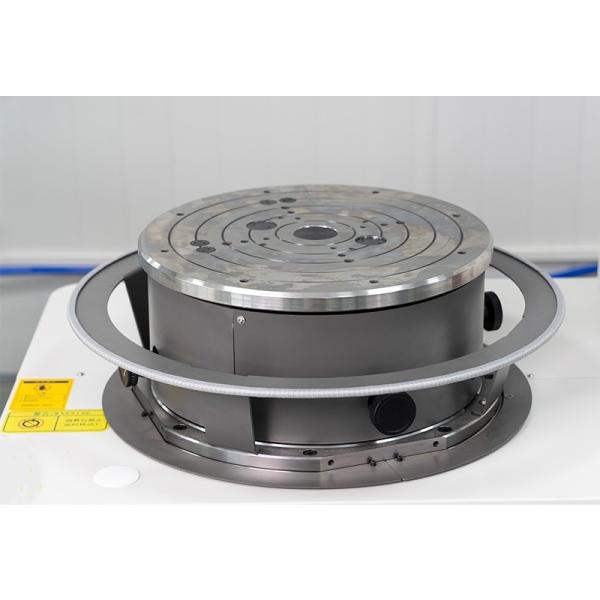

Rotary Worktable

Rotational Accuracy

(0.05 + 6H/10000)μm

(0.05 + 6H/10000)μm

Effective Diameter of Worktable

300mm

400mm

Rotational Speed

6rpm

6rpm

Maximum Measuring Diameter

320mm

420mm

Maximum Workpiece Diameter (Swing Diameter)

500mm

650mm

Table Load Capacity

Optional: 60kg, 80kg

Optional: 100kg, 120kg

Vertical Axis

Vertical Movement

Optional: 600mm, 800mm, 1000mm, 1300mm

Vertical Movement Mode

Electric

Straightness

0.3μm/100mm

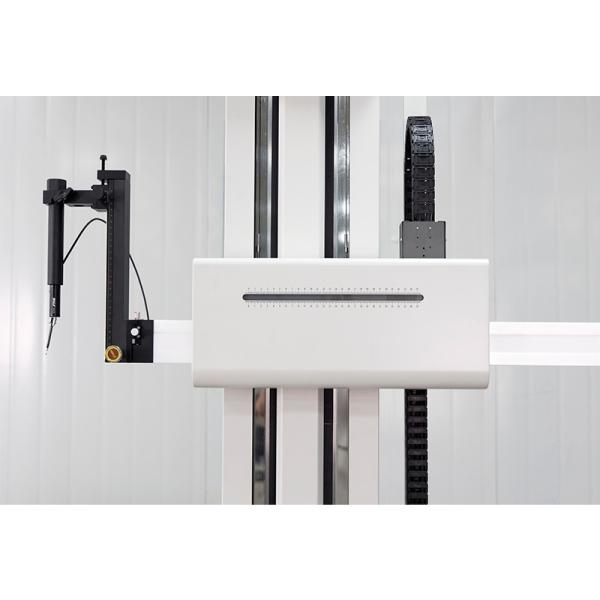

Horizontal Arm

Horizontal Movement

225mm

255mm

Overhang

25mm

Horizontal Movement Mode

Electric

Detector

Acquisition Device

Circular Grating

Number of Circumferential Sampling Points

14400

Sensor Type

Inductive

Sensor Measuring Range

±500μm

Sensor Resolution

0.001μm
