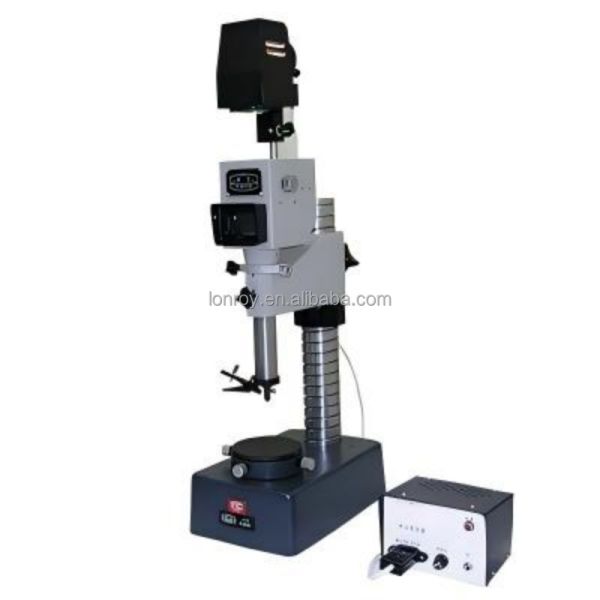

Projection Vertical Optical Gauge High Precision Optical Mechanical Length Measuring Instrument Vertical Projection Optimeter

Product Description

The projection optical gauge is a precision optical mechanical length measuring instrument. It measures micro-differences in part dimensions by comparing a standard gauge block with the part being measured. It is a commonly used precision instrument in factory metrology rooms, workshop calibration stations, or in gage, tool, and precision parts manufacturing workshops. It can calibrate gauge blocks and high-precision cylindrical gauge blocks, and can compare the diameters of cylindrical and spherical workpieces, the thickness of sample workpieces, and the pitch diameter of external threads.

Features:

It utilizes wax screen technology and an attached reading magnifier, ensuring uniform brightness and clear image quality.

The instrument offers high measurement accuracy, stable and reliable data, and is convenient and quick for inspecting small precision parts.

The compact design and small dimensions make it easy to transport.

It serves two purposes: the projection optical gauge tube can be removed and installed on the machine tool to directly control machining dimensions.

Projection Vertical Optical Gauge High Precision Optical Mechanical Length Measuring Instrument Vertical Projection Optimeter

Technical Specification

Measuring Range

Measuring Range

0-180 mm

Worktable

Circular Flat Worktable

φ88 mm

Circular Ribbed Worktable

φ88 mm

Square Ribbed Worktable

142 mm x 130 mm

Outer Diameter of Auxiliary Worktable Measuring Spindle and Measuring Cap

φ6g6

Parallelism Error of Small Three-Point Worktable

0.0015 mm

Instrument Accuracy

Indication Error (Within 60μm)

±0.20 μm

Indication Error (Over 60μm)

±0.25 μm

Indication Stability

0.1 μm

Projection Optical Meter

Graduation

0.001 mm

Graduation Range

±0.1 mm

Measuring Force

2 ± 0.2 N

Zero Adjustment Range

20 Steps

Free Lifting Distance of Measuring Rod

0.5 mm

Projection Optical Meter Tube Outer Diameter

φ28h6

Measuring Rod and Cap Outer Diameter

φ6g6

Environmental Requirements

Room Temperature

20°C ± 3°C

Relative Humidity

≤ 60%

Equipment Dimensions & Weight

Instrument Weight

21 kg

Instrument Dimensions

340 mm (Length) x 160 mm (Width) x 750 mm
