Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
--
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year

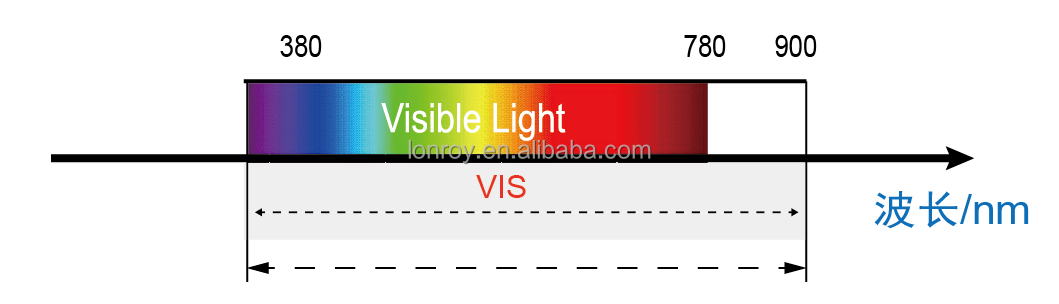

Wavelength Range :
380-1700nm
Sample Size :
Standard 300mm (optional)
Test Time :
Better than 0.1 second
Light Source Lifetime :
10,000 hours
MOQ :
1
Description

Microscopic Film Thickness Meter Coating Thickness Tester Microscopic Film Thickness Gauge

I. Overview

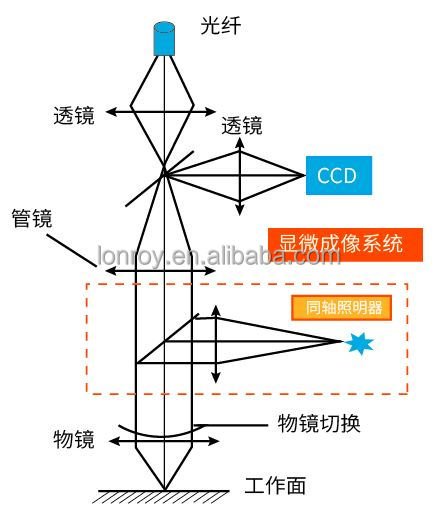

The LR-A427 can provide a focused light spot with a micron-level resolution for specific small areas. At the same time, it uses a microscopic objective lens to locate the measurement points, thereby obtaining precise thickness characterization results at the specific positions.

1. The size of the light spot can be customized, and the minimum size can reach 10 micrometers.

2. Non-contact, non-destructive measurement;

3. The core algorithm supports the analysis of thin films to thick films, and single-layer films to multi-layer films.

4. Flexible configuration, supporting customization

II. Product Features

1. Utilizing high-intensity halogen light sources, the light source has excellent stability;

Microscopic Film Thickness Meter Reflective Coating Thickness Tester Microscopic Film Thickness Gauge

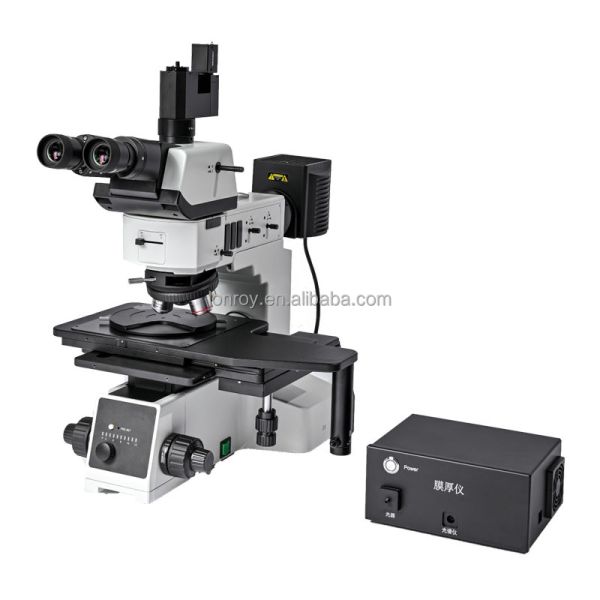

2. It adopts a highly integrated design of optics, mechanics and electronics, featuring a small size and easy operation.

Microscopic Film Thickness Meter Reflective Coating Thickness Tester Microscopic Film Thickness Gauge

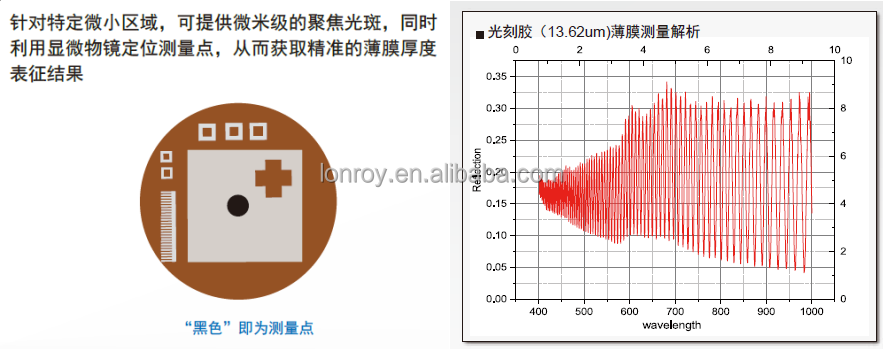

3. Based on the principle of interference of reflected light at the interface and the lower interface of the thin film layer, it is easy to analyze from a single layer to multiple layers.

Microscopic Film Thickness Meter Reflective Coating Thickness Tester Microscopic Film Thickness Gauge

III. Product Applications

The micro film thickness instrument is widely used for measuring various types of films such as protective films in various media, organic films, inorganic films, metal films, and coatings.

Microscopic Film Thickness Meter Reflective Coating Thickness Tester Microscopic Film Thickness Gauge

Microscopic Film Thickness Meter Coating Thickness Tester Microscopic Film Thickness Gauge

Technical Specification

Wavelength Range

380-1700nm

Light Source

Halogen Tungsten Lamp

Thickness Range

10µm-250µm

Accuracy

0.02nm

Spot Size

Standard 1.5mm (optional up to 10µm)

Sample Size

Standard 300mm (optional)

Test Time

Better than 0.1 second

Light Source Lifetime

10,000 hours

Microscopic Film Thickness Meter Reflective Coating Thickness Tester Microscopic Film Thickness GaugeMicroscopic Film Thickness Meter Reflective Coating Thickness Tester Microscopic Film Thickness Gauge
