BD-ASP-XW6 Fiber Bulk Density Tester
BD-ASP-XW6 Fiber Bulk Density Tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-ASP-XW6
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Funnel :
height 115mm, upper inner diameter 55mm±1mm, lower inner diameter 35mm±1mm
Metal cup :
height 80mm±1mm, inner diameter 40mm±1mm
Volume :
100mL
The distance between the lower edge of the funnel and the upper surface of the metal cup :
40mm
Description
BD-ASP-XW6 Fiber Bulk Density Tester
Product Overview

The BD-ASP-XW6 fiber bulk density tester is designed and manufactured in accordance with the relevant requirements of "Appendix N Bulk Density Test of Granular Wood Fibers" in the transportation industry standard JT/T 533-2020 "Fibers for Asphalt Pavement". This instrument uses the test method described in the standard to obtain the loose density value of granular wood fiber through calculation.

Main Features
  • Stainless steel funnels and stainless steel metal cups adopt special processing technology to ensure smooth inner surfaces and meet test requirements
  • The test funnel discharge valve has reasonable design, reliable discharge and durability
  • The base of the instrument is stable, the bracket is firm, there is no shaking during the test, and the test results are reliable
  • The base is equipped with a horizontal bubble. Adjusting the four horizontal adjustment feet can make the base horizontal and the column vertical, thereby ensuring the accuracy of the test results
Technical Specifications
Component Specification
Funnel Height 115mm, upper inner diameter 55mm±1mm, lower inner diameter 35mm±1mm
Metal Cup Height 80mm±1mm, inner diameter 40mm±1mm
Volume 100mL
Funnel to Cup Distance 40mm between lower edge of funnel and upper surface of metal cup

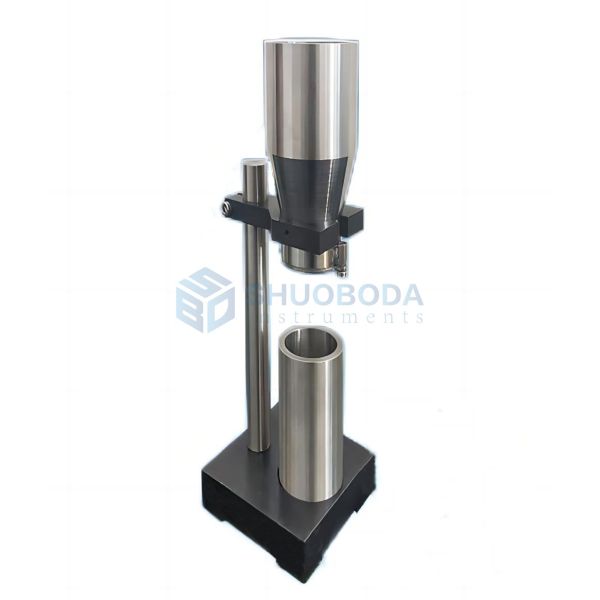

Product Image
BD-ASP-XW6 Fiber Bulk Density Tester
