BD-ASP-0705 Compacted Asphalt Mixture Density Tester
BD-ASP-0705 Compacted Asphalt Mixture Density Tester
BD-ASP-0705 Compacted Asphalt Mixture Density Tester
BD-ASP-0705 Compacted Asphalt Mixture Density Tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-ASP-0705
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Working power supply :
AC (220±10%) V, 50Hz
Inner diameter of overflow tank :
440mm×410mm×200mm
Circulating water pump flow :
10L/min
Electronic balance, maximum weighing :
15kg;
weighing sense :
0.1g
Water bath temperature control accuracy :
25±0.5℃
Description

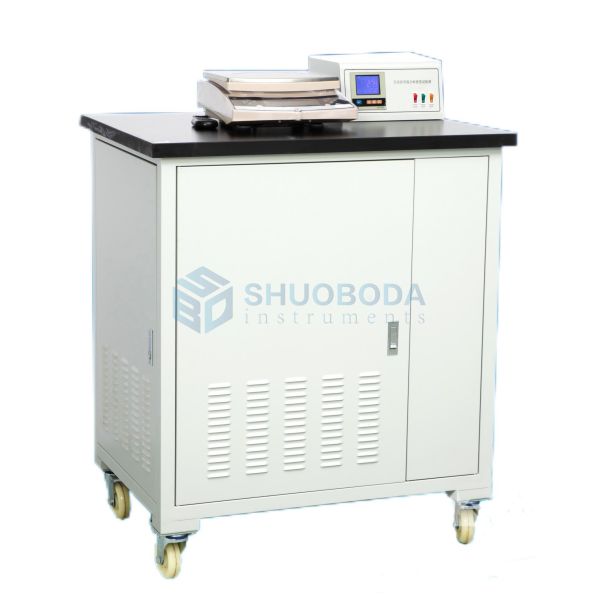

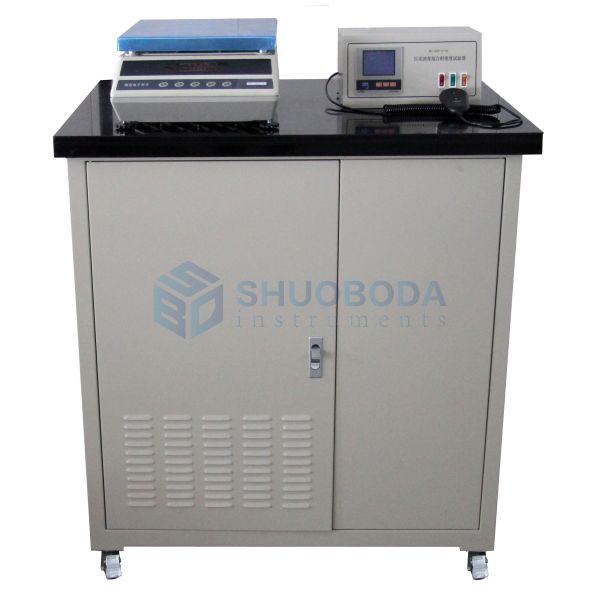

BD-ASP-0705 Compacted Asphalt Mixture Density Tester
Product Overview

This instrument is designed and manufactured in accordance with the People's Republic of China industry standard JTG E20-2011 "Testing Procedures for Highway Engineering Asphalt and Asphalt Mixtures." It specifically addresses the requirements specified in T 0705-2011 (Surface Dry Method), T 0706-2011 (Water Gravity Method), and T 0707-2011 (Wax Seal Method) for density testing of compacted asphalt mixtures.

Applications
  • Surface dry method testing for various asphalt mixture specimens with water absorption rate ≤ 2% (T 0705 standard)
  • Water gravity method testing for dense asphalt mixture specimens with water absorption < 0.5% (T 0706 standard)
  • Wax seal method testing for asphalt concrete or asphalt gravel mixture specimens with water absorption rate > 2% (T 0707 standard)
  • Weighing aerial mass of dry specimens and calculating gross volume relative density and density (T 0708 standard)
Technical Features
  • Multi-functional design meeting requirements for surface dry, water weight, wax seal, and volume methods
  • Microcomputer-controlled water bath temperature with simple, reliable operation
  • Detachable electrical control box with aviation plug connections
  • High-precision electronic balance with large measuring range and stable performance
  • Stainless steel overflow water tank with automatic water level stabilization
  • Electric lifting mechanism with push rod motor for smooth, quiet operation
  • Composite rationalized board work surface providing stable platform
Technical Specifications
  • Power Supply: AC (220±10%) V, 50Hz
  • Overflow Tank Dimensions: 440mm × 410mm × 200mm (L×W×H)
  • Circulating Water Pump Flow: 10L/min
  • Electronic Balance: Maximum weighing 15kg; Sensitivity 0.1g
  • Water Bath Temperature Control Accuracy: (25±0.5)℃
