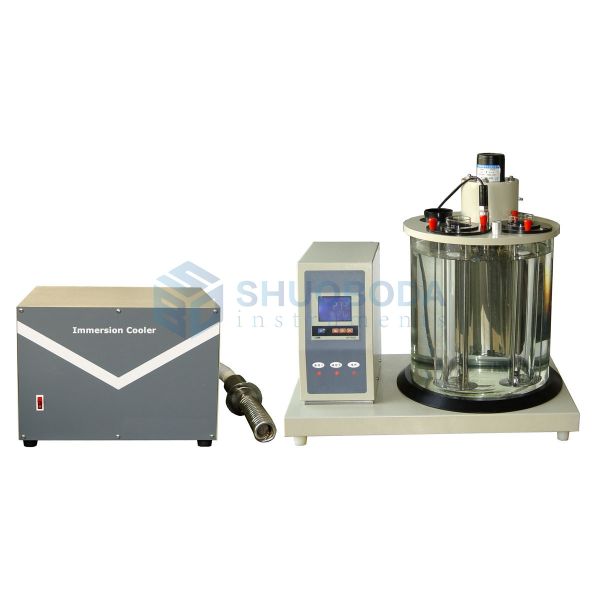

BD-D1298-1884A Petroleum Products Density Tester
BD-D1298-1884A Petroleum Products Density Tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D1298-1884A
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Power supply :
AC(220±10%)V, 50Hz
Cooling Power :
180W
Refrigeration :
Totally enclosed type compressor
Refrigerant :
R134a,environment friendly
Relative humidity :
≤85%
Dimension :
450mm×400mm×300mm
Description
BD-D1298-1884A Petroleum Products Density Tester
Product Overview

The BD-D1298-1884A Petroleum Products Density Tester is designed and manufactured in accordance with standards GB/T 1884-2000 and ASTM D1298. This instrument is used to determine the density of crude petroleum and liquid petroleum products using the hydrometer method.

Key Features
  • All-in-one machine design with humanized control box and light-touch control switches
  • Simple, compact structure for easy operation
  • Intelligent LCD temperature controller with fast control rate and minimal overshoot (±0.2°C accuracy)
  • Equipped with hard glass vessel and electric stirrer for uniform temperature distribution
  • Includes portable cooler for refrigeration according to test requirements
Technical Specifications
Constant Temperature Bath
Power Supply AC(220±10%)V, 50Hz
Bath Dimension Ф300mm × 340mm
Cylinder Capacity 500ml
Heating Power 700W, 1000W
Temperature Range Ambient to 100°C
Temperature Accuracy ±0.2°C
Sensor Pt100
Thermometer Mercury-in-glass thermometer (0.2°C scale division)
Overall Dimension 560mm × 380mm × 580mm
Portable Cooler
Power Supply AC(220±10%)V, 50Hz
Cooling Power 180W
Refrigeration Totally enclosed type compressor
Refrigerant R134a (environment friendly)
Ambient Temperature 5°C to 35°C
Relative Humidity ≤85%
Dimension 450mm × 400mm × 300mm
Standard Accessories
No. Item Unit Quantity
1 Thermometer (-20°C ~ 102°C, 0.2°C scale division) Piece 1
2 Density meter (10 pieces in a group) Set 1
3 Sensor Piece 1
4 Thermometer stopper (3#) Piece 2
5 500 ml test tube Piece 2
6 Stopping ring for thermometer (1#) Piece 4
7 Rubber stopper (21#) Piece 1
8 Fuse 10A (Φ5×20) Piece 2
9 Sample tube holder Piece 2
10 Portable Cooler (Instructions attached) Set 1
