BD-D1298-1884 Petroleum Products Density Tester
BD-D1298-1884 Petroleum Products Density Tester
BD-D1298-1884 Petroleum Products Density Tester
BD-D1298-1884 Petroleum Products Density Tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D1298-1884
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Power supply :
AC 220V±10%, 50 Hz;
Cubage of bath :
Ф300×380 mm;
Heating power :
700 W; 1000 W;
Temperature controlling range :
0°C ~ 100°C
Temperature controlling accuracy :
±0.2°C
Dimension :
560mm×380mm×580mm
Description
BD-D1298-1884 Petroleum Products Density Tester
Product Overview

The BD-D1298-1884 Petroleum Products Density Tester is designed and manufactured in accordance with the National Standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods)". This instrument is specifically designed to determine the density of liquid petroleum products using a densimeter.

Working Conditions
  • Ambient temperature: -10°C to +40°C; temperature variation should not exceed ±2°C
  • Relative humidity: ≤85%
  • The instrument should be placed on a flat workbench during operation, and air convection should be minimized during testing
  • For long-term storage, please keep the instrument in a dry environment
Technical Parameters
  • Power supply: AC 220V±10%, 50 Hz
  • Bath capacity: Ф300×380 mm
  • Heating power: 700 W; 1000 W
  • Temperature controller:
    • Temperature control range: 0°C to 100°C
    • Temperature control accuracy: ±0.2°C
    • Temperature sensor: Industrial platinum resistance Pt100
  • Thermometer: Total immersion mercury thermometer with scale division of 0.2°C
  • Cylinder capacity: 500ml
  • Dimensions: 560mm×380mm×580mm
Standard Accessories
No. Item Unit Qty
1 Thermometer (-20°C ~ 102°C, scale division is 0.2°C) Piece 1
2 Density meter (10 pieces in a group) Set 1
3 Sensor Piece 1
4 Thermometer stopper (3#) Piece 2
5 500 ml test tube Piece 2
6 Stopping ring for thermometer (1#) Piece 4
7 Rubber stopper (21#) Piece 1
8 Fuse 10A (Φ5×20) Piece 2
9 Sample tube holder Piece 2

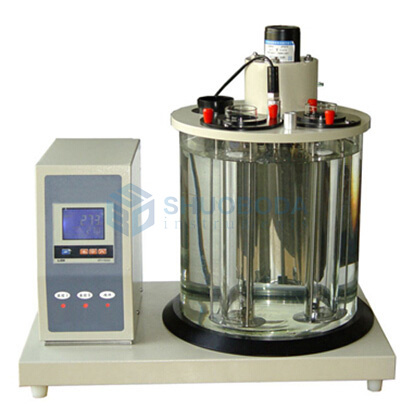

Product Image
BD-D1298-1884 Petroleum Products Density Tester
