Automatic Disintegration Time Limit Testing Apparatus 3 Cups
Automatic Disintegration Time Limit Testing Apparatus 3 Cups
Specifications
Temperature accuracy :
0.01°C
Temperature range :
5°C~50°C
Hanging basket lifting frequency :
30~32 times/minute
Basket lifting count :
independent real-time display of the number of lifts and lowerings of the three baskets
Temperature deviation :
≤±0.3°C
Temperature control sensor :
1/3B high-precision Pt1000
Brand Name :
SHUOBODA
Model Number :
DP-BJ-3CPRO
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Description
Automatic Disintegration Time Limit Testing Apparatus 3 Cups
Product Overview

The DP-BJ-3CPro Intelligent Disintegration Tester is a high-precision, intelligent instrument designed for professional users. It complies with disintegration time limit specifications for tablets, capsules, and pills as outlined in the 2025 edition of the Chinese Pharmacopoeia, while also meeting testing requirements of USP, BP, and JP standards.

System Configuration
  • DP-BJ-3CPro Intelligent Disintegration Apparatus: 1 set
  • Lifting basket: 3 sets
  • Water bath: 1 piece
  • 1000ml beaker: 3 pieces
  • Baffle: 18 pieces
Operating Conditions
  • Safety performance: Complies with relevant Chinese pharmaceutical industry standards
  • Power supply: AC 220V ±10%, 50Hz, ≤600W
  • Environmental conditions: Ambient temperature 5-35°C; humidity <80%
Technical Specifications
Feature Specification
Configuration Three-basket design with independent or synchronous operation
Access Control Password-protected hierarchical login
Display High-resolution color touchscreen
Operating Modes Basic test (count-up timer) and Programmed test (count-down timer)
Timing Range Arbitrarily set within 24-hour period
Temperature Control 5°C to 50°C range with 0.01°C resolution
Temperature Accuracy ≤±0.3°C
Lifting Frequency 30-31 cycles/minute
Lifting Amplitude 55 mm (±0.5 mm accuracy)
Mesh to Cup Bottom 25 mm distance
Mesh Aperture 2 mm standard (0.425 mm, 1 mm, 0.71 mm optional)
Dimensions 570 mm × 350 mm × 550 mm (L×W×H)
Weight 23 kg
Advanced Features
  • Real-time display of basket lifting cycles for frequency monitoring
  • Automatic basket positioning at highest position upon test completion
  • Scheduled shutdown and automatic preheating functions
  • Intelligent temperature calibration through interactive operations
  • Temperature anomaly alarms and secondary overheat protection
  • Real-time date and time display
  • Bilingual Chinese/English interface with single-key switching
  • Comprehensive audit trail records with printing support
Applicable Standards
  • Pharmacopoeia of the People's Republic of China (2025 Edition)
  • Current Chinese GMP regulations
  • USP, BP, and JP disintegration testing requirements
Product Gallery

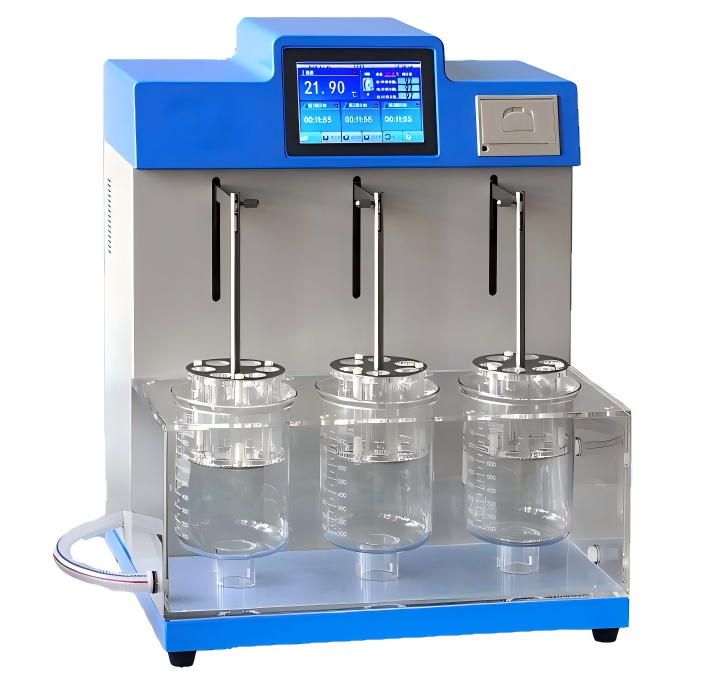

Automatic Disintegration Time Limit Testing Apparatus 3 Cups Automatic Disintegration Time Limit Testing Apparatus 3 Cups Automatic Disintegration Time Limit Testing Apparatus 3 Cups
