DP-BJ-1 Automatic Tablet Disintegration Tester For Detecting Disintegration Of Solid
DP-BJ-1 Automatic Tablet Disintegration Tester For Detecting Disintegration Of Solid
Specifications
Brand Name :
SHUOBODA
Model Number :
DP-BJ-1
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working dyas
Packaging Details :
Plywood packing
Basket assembly :
1
Nacelle up and down frequency :
30 - 32 time/min
Nacelle up and down range :
54-56 mm
Automatic time range :
1-900 minutes
Time accuracy :
+/- 0.5 minute
The cubage of beaker :
1000 ml
Description

DP-BJ-1 Automatic Tablet Disintegration Tester

Descriptions:

DP-BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.

Specifications

Detecting disintegration of solid

There are six tubes in one basket assembly

Automatic Disintegration tester

Applicable standards:

National standard (Chinese codex)/2005/

Corporate standard (Disintegration tester) Q/12XQ0188-2004


Features:

1. There are six tubes in one basket assembly.

2. Auto stop at timing point.

3. The bath liquid can achieve an even temperature.

4. AMPU is used to automatically control the temperature, time and frequency of nacelle up and down.

5. The instrument automatically controls the water bath temperature to 37.0°C (pharmacopoeia regulations). High-precision digital electronic sensor ensures high precision and accuracy of water bath temperature without calibration.

6. Parameters can be preset at any time. The preset and real data can be displayed alternately in time.

7. Automation: auto-test, auto-diagnose, auto-alarm.

Technical Parameters:

Model

DP-BJ-1

Basket assembly

1

Nacelle up and down frequency

30 - 32 time/min

Nacelle up and down range

54-56 mm

Automatic time range

1-900 minutes

Time accuracy

+/- 0.5 minute

The cubage of beaker

1000 ml

The quantity of glass tube

6 pcs

Controlling temperature range

Room temperature to 45 °C

Accuracy of controlling temperature

+/- 0.5 °C

Power

600 W

Power supply

AC, 220V/50HZ or 110V/60HZ 1 phase

Net weight

11 kg

Overall size

260 300 x 420 mm


Products Gallery

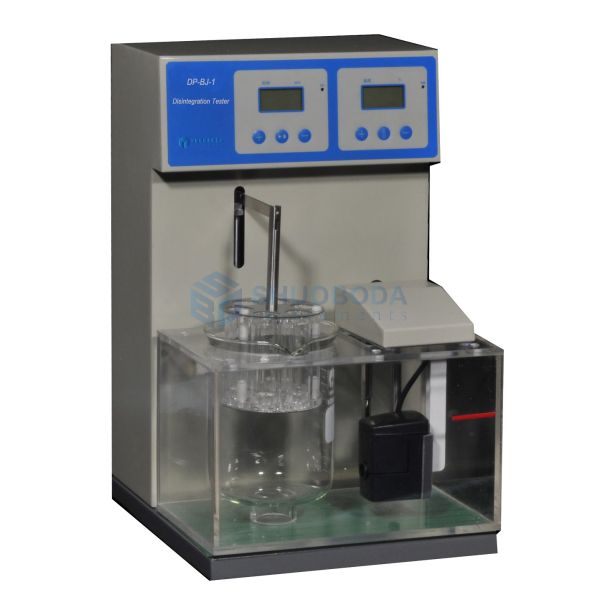

DP-BJ-1 Automatic Tablet Disintegration Tester For Detecting Disintegration Of Solid
