DP-BJ-2 Automatic Tablet Disintegration Apparatus 600W
DP-BJ-2 Automatic Tablet Disintegration Apparatus 600W
Specifications
Brand Name :
SHUOBODA
Model Number :
DP-BJ-2
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Basket Assembly　 :
2 pcs
The quantity of glass tube　 :
12pcs
The cubage of beaker :
1000ml
asket up and down frequency　 :
(30-32)times／min
Basket up and down range :
(55±1) mm
Minimum screen spacing :
(25±2) mm
Description

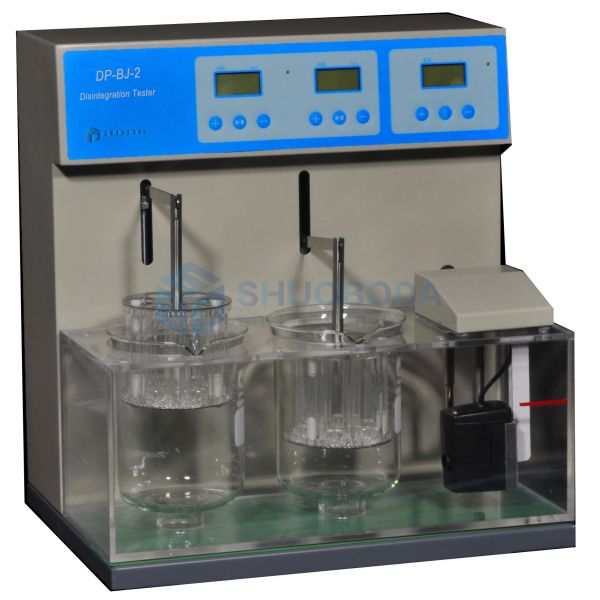

DP-BJ-2 Automatic Tablet Disintegration Tester

Descriptions

DP-BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.

Specifications

Ø Detecting disintegration of solid

Ø There are twelve tubes in two basket assemblies

Ø Automatic Disintegration tester

Applicable Standards

Ø National standard (Chinese codex)/2005/

Ø Corporate standard (Disintegration tester) Q/12XQ0188-2004

Main Features

1. The double basket working station system determines the disintegration time.

2. 2 sets of hanging baskets can conduct disintegration experiments independently.

3. Electronic temperature sensors display and monitor the temperature at various points in the water bath and in the beaker. Using high-precision digital electronic sensors, it can ensure high precision and accuracy of the water bath temperature without calibration.

4. Automatically control the water bath temperature to 37.0°C (pharmacopoeia regulations). And the preset temperature can be reset at any time.

5. The lifting time of the hanging basket is automatically set to 15 minutes, and can be reset at will.

6. It adopts computer control technology with single-chip microcomputer as the core to intelligently control two performance parameters: water bath temperature and working time.

7. With function of monitoring the water bath temperature, overheating alarm and automatic protection.

Specifications

MODEL

DP-BJ-2

Basket Assembly　　

2 pcs

The quantity of glass tube　

12pcs

The cubage of beaker　　

1000ml

Basket up and down frequency　　

(30-32)times／min

Basket up and down range　　

(55±1) mm

Minimum screen spacing　　

(25±2) mm

Time setting range　　　

(1-900) minutes

Timing accuracy

±0.5 min

Preset temperature range　　

(20-45) °C

Automatic temperature control precision　　

±0.5°C

Heater power　　

500W

Continuous working time　　

＞24hours

Power supply　　　　　

220V/50Hz

power　　　　　

600W

Dimension　　　

400 X300 X420 mm

Weight　　　　　

16KG

Products Gallery

DP-BJ-2 Automatic Tablet Disintegration Apparatus 600W

DP-BJ-2 Automatic Tablet Disintegration Apparatus 600W

DP-BJ-2 Automatic Tablet Disintegration Apparatus 600W
