DP-BJ-3 Automatic Tablet Disintegration Test Machine 3 Basket Assembly
DP-BJ-3 Automatic Tablet Disintegration Test Machine 3 Basket Assembly
Specifications
Brand Name :
SHUOBODA
Model Number :
DP-BJ-3
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Basket assembly :
3
Nacelle up and down frequency :
30 - 32 time/min
Nacelle up and down range :
54-56 mm
Automatic time range :
1-900 minutes
Time accuracy :
+/- 0.5 minute
The cubage of beaker :
1000 ml
Description

DP-BJ-3 Automatic Tablet Disintegration Tester

Description

BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.

Specifications

Ø Detecting disintegration of solid

Ø There are eighteen tubes in three basket assemblies

Ø Automation

Ø Disintegration tester

Applicable standards:

Ø National standard (Chinese codex)/2005/

Ø Corporate standard (Disintegration tester) Q/12XQ0188-2004

Features:

1. There are eighteen tubes in three basket assemblies.

2. Each test station is driven independently. Auto stop at timing point.

3. The bath liquid can achieve an even temperature.

4. AMPU is used to automatically control the temperature, time and frequency of nacelle up and down.

5. Parameters can be preset at any time. The preset and real data can be displayed in time.

6. Automation: auto-test, auto-diagnose, auto-alarm.

Technical Parameters:

Model

DP-BJ-3

Basket assembly

3

Nacelle up and down frequency

30 - 32 time/min

Nacelle up and down range

54-56 mm

Automatic time range

1-900 minutes

Time accuracy

+/- 0.5 minute

The cubage of beaker

1000 ml

The quantity of glass tube

18 pcs

Controlling temperature range

Room temperature to 45 °C

Accuracy of controlling temperature

+/- 0.5 °C

Power

600 W

Power supply

AC, 220V/50HZ or 110V/60HZ 1 phase

Net weight

22 kg

Overall size

540 x 300 x 420 mm

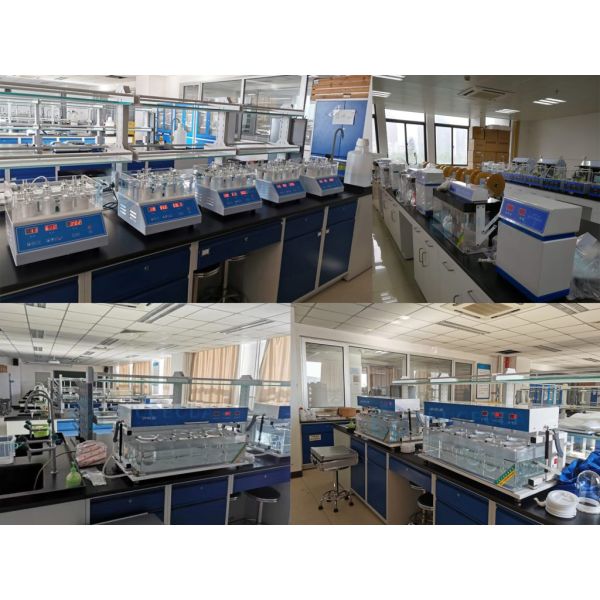

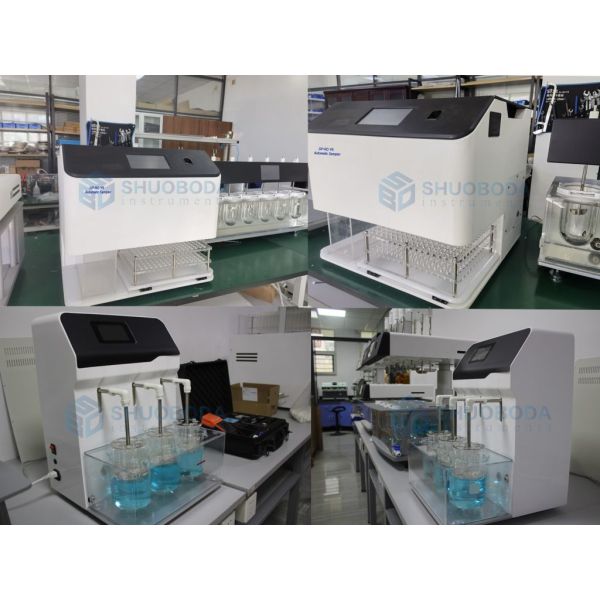

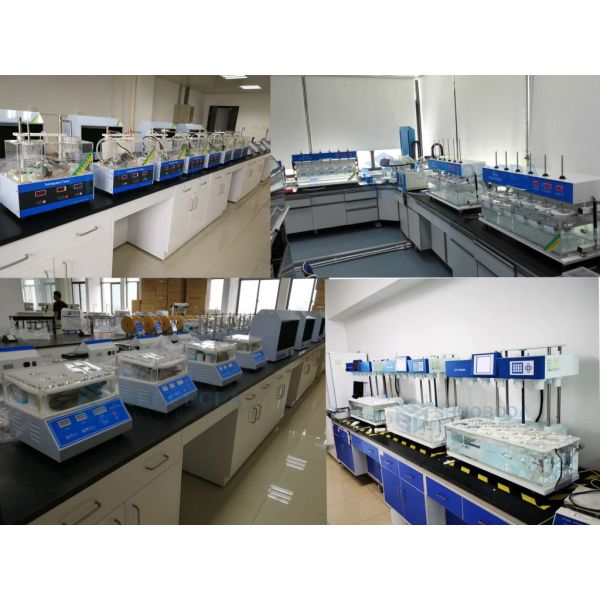

Products Gallery

DP-BJ-3 Automatic Tablet Disintegration Test Machine 3 Basket Assembly

DP-BJ-3 Automatic Tablet Disintegration Test Machine 3 Basket Assembly

DP-BJ-3 Automatic Tablet Disintegration Test Machine 3 Basket Assembly
