UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support
UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support
UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support
UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support
Specifications
MOQ :
1
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-1010
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20 Unit/Month
Delivery Time :
5-10 work days
Packaging Details :
Professional Export Packing
Model NO. :
UP-1010
HS Code :
9024800000
Center Space of Wheel :
63.5mm
Distance Between Wheel and Test Plate :
37~38mm
Distance Between Sample and Dust Collect :
3mm
Rotating Speed :
60rpm
Service Support :
OEM ODM
Language :
Chinese and English
MOQ :
1 PCS
Applications :
Glass, Ceramatic, Floor Tiles and etc.
Description
UP-1010 Stable Rubber and Plastic Rolling Wear Testing Machine
This durable wear testing machine is designed for evaluating the abrasion resistance of various materials including surfaces, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber.
Testing Method
The testing procedure involves using a standard knife to cut the specimen, followed by abrasion with regulated grinding wheel models under specified loading weights. After reaching a predetermined rotation count, the specimen is removed for condition observation or weight comparison with original materials.
Compliance Standards
DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470, QB/T2726-2005
Technical Specifications
ParameterSpecification
Specimen Dimensionφ110mm φ6mm
Grinding Wheelφ2″(MAX .45mm) 1/2″(W)
Center Space of Wheel63.5mm
Distance Between Wheel and Test Plate37~38mm
Rotating Speed60rpm

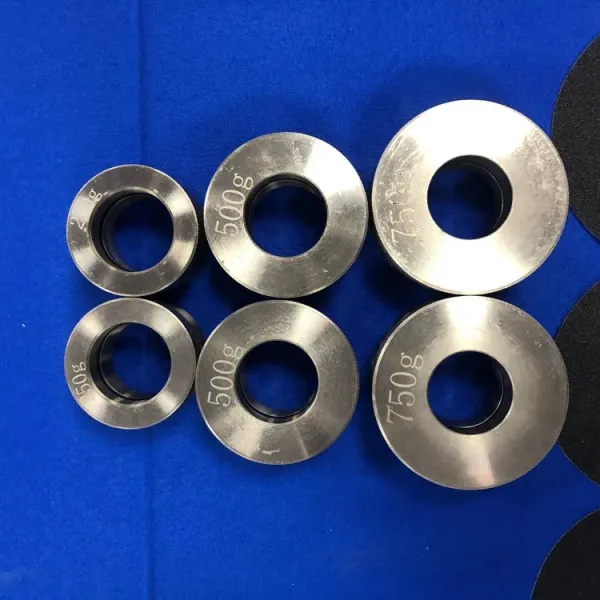

Load250g, 500g, 750g, 1000g
TimerLCD, 0~999999
Distance Between Sample and Dust Collector3mm
Dimension53×32×31cm
Weight18kg (Excluding dust collector)
Power1∮, AC220V, 50HZ

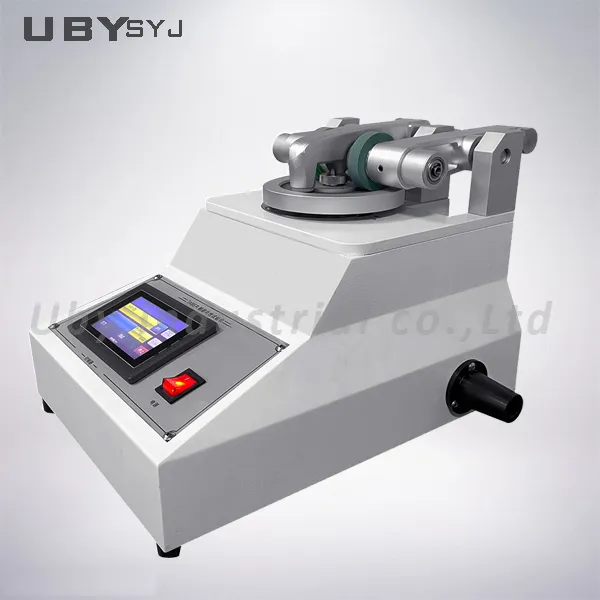

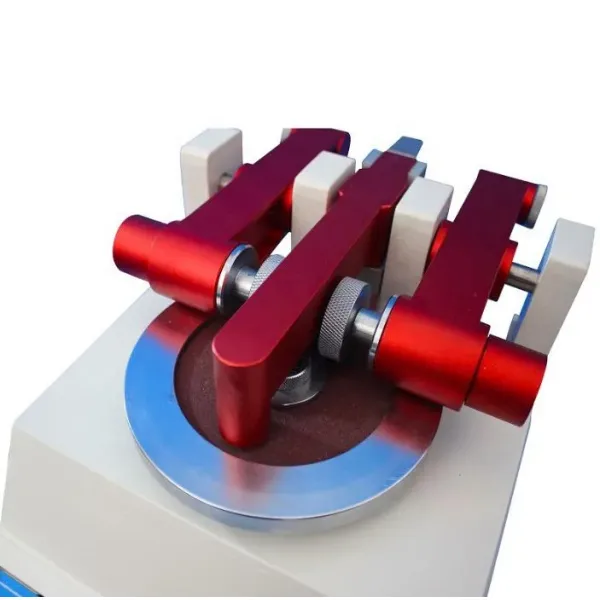

Product Images
UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support UP-1010 Abrasion Testing Machine with 60rpm Rotating Speed and φ110mm Specimen Dimension for OEM ODM Support
Our Service Commitment
Consultative Selling Approach
We provide comprehensive support throughout the entire business process:
  • Inquiry Process: Technical discussion of testing requirements, product recommendations, and competitive pricing
  • Customization Process: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Production updates, calibration services, quality testing, and timely shipping
  • Installation & Support: Field installation and ongoing after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. All machines include 12-month warranty with free maintenance. For sea transportation, we extend warranty to 14 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Out of stock: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How do I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when necessary.
