UP-1010 Taber Abrasion Tester Compliant With ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204 Featuring Adjustable Load 250g, 500g, 1000g and 60 r/min Rotation Speed
UP-1010 Taber Abrasion Tester Compliant With ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204 Featuring Adjustable Load 250g, 500g, 1000g and 60 r/min Rotation Speed
UP-1010 Taber Abrasion Tester Compliant With ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204 Featuring Adjustable Load 250g, 500g, 1000g and 60 r/min Rotation Speed
UP-1010 Taber Abrasion Tester Compliant With ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204 Featuring Adjustable Load 250g, 500g, 1000g and 60 r/min Rotation Speed
UP-1010 Taber Abrasion Tester Compliant With ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204 Featuring Adjustable Load 250g, 500g, 1000g and 60 r/min Rotation Speed
UP-1010 Taber Abrasion Tester Compliant With ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204 Featuring Adjustable Load 250g, 500g, 1000g and 60 r/min Rotation Speed
Specifications
Certification :
CE,ISO
Model NO. :
UP-1010
Delivery Time :
5-15 work days
Language :
Chinese and English
Packaging Details :
Professional export packaging
Center Distance from Wheel to Specimen :
37–38 mm
Center Distance Between Wheels :
53 mm
Price :
Negotiable
Name :
Abrasion Testing Machine
Place of Origin :
CHINA
Specimen :
120 × 6.5 × 3mm
MOQ :
1 Unit
Model Number :
UP-1010
Load :
250g, 500g, 1000g
Payment Terms :
D/P,T/T,Western Unions,Papal,Money Gram
Applications :
Skin, Leather, Cloth, Paint, Paper, Flooring, Ply
Brand Name :
YOUBI
Supply Ability :
20 Unit/month
Testing Disk Speed :
0-70 Adjustable
Service Support :
OEM ODM
Description

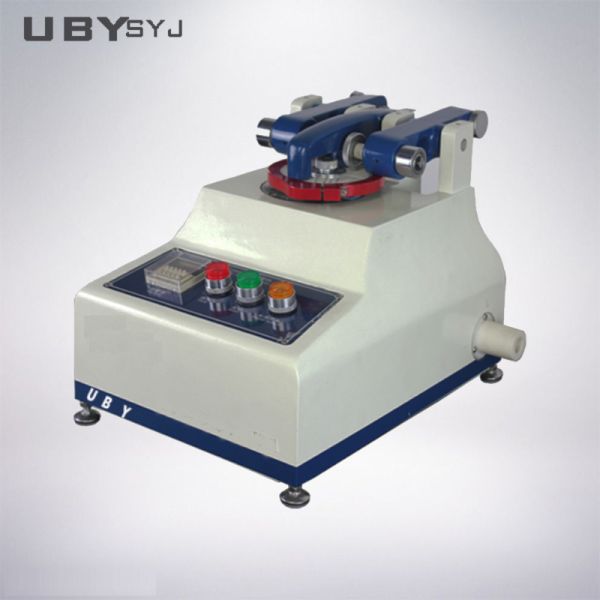

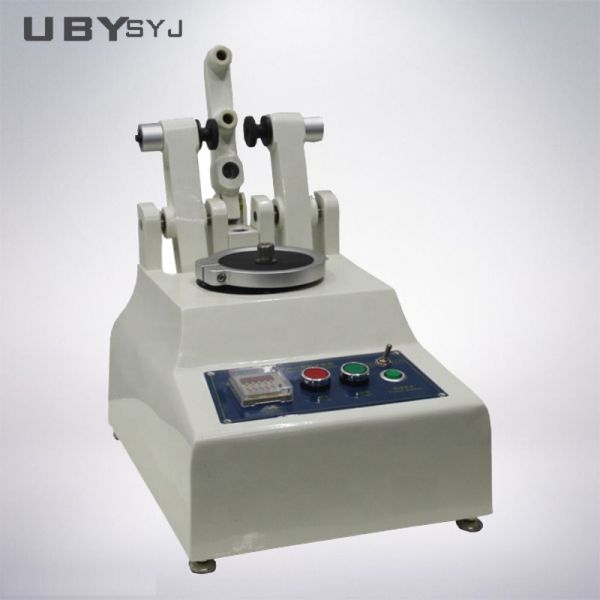

UP-1010 Taber Abrasion Tester
Compliant With Major Standards Including ASTM D4060, ASTM D1044, ISO 5470 and JIS K7204
Application

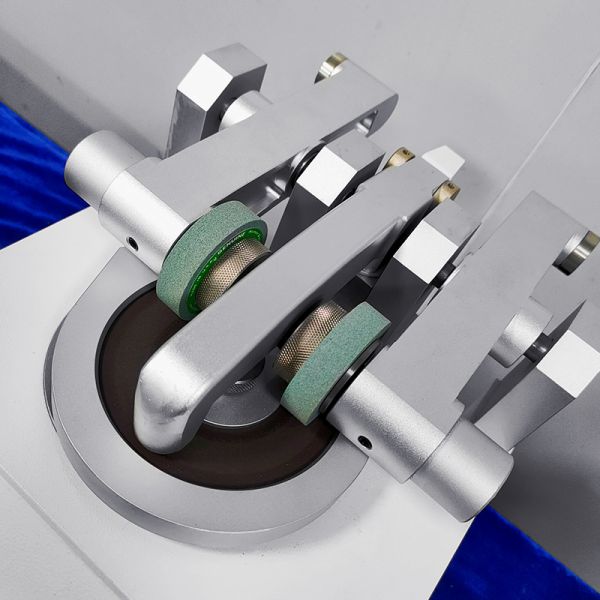

This tester is designed for wear resistance testing of various materials including skin, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. The testing method involves using a standard knife to cut the specimen, followed by abrasion with regulated grinding wheel models under specified loading weights. After reaching a predetermined number of rotations, the specimen is removed for observation of its condition or comparison of weight with the original material. Available grinding wheel models include H18, H22, CS17, S32, and S33.
Specifications
Item Specification
Specimen Size Outer diameter Ø108 mm, inner diameter Ø8 mm or 3 mm (D)
Abrasive Wheel Ø2" (max. 45 mm), width 1/2 inch
Center Distance Between Wheels 53 mm
Center Distance from Wheel to Specimen 37-38 mm
Rotation Speed 60 r/min (50 Hz) or 72 r/min (60 Hz)
Load Weight 250 g, 500 g, 1000 g
Counter LED, 0-999,999 cycles, auto stop
Distance from Specimen to Vacuum Nozzle 3 mm (adjustable 2-7 mm)
Machine Dimensions (L × W × H) 330 × 430 × 310 mm
Weight 18 kg (excluding vacuum unit)
Power Supply AC 220V, 50 Hz, single phase 10A
Accessories Specimen cutter, wrench, one set of abrasive wheels, one pack of sandpaper
Material Type & Recommended Abrasive Wheel
Material Type Recommended Abrasive Wheel
Coating CS10, CS17
Floor Tile CS17, H18
Plywood CS32, CS33
Plastic H18, H22, CS17
Fabric H18, H22, CS17
