UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
Specifications
Price :
Negotiable
Service Support :
OEM ODM
Certification :
CE, ISO
Packaging Details :
Professional export packaging
Language :
Chinese and English
Model Number :
UP-1010
Center Distance Between Wheels :
53mm
Brand Name :
YOUBI
MOQ :
1
Payment Terms :
D/P,T/T,Western Union,Paypal
Applications :
Rubber Leather Textile Plastic ...etc
Place of Origin :
CHINA
Load Weight :
250 g, 500 g, 1000 g
Delivery Time :
5~10 work days
Abrasive Wheel :
Ø2" (max. 45 mm), width 1/2 inch
Supply Ability :
20 Unit/month
Model NO. :
UP-1010
Center Distance from Wheel to Specimen :
37–38 mm
Specimen Size :
Outer diameter Ø108 mm, inner diameter Ø8 mm or 3 mm (D)
Specification :
Refer to the actual size specifications
Description
UP-1010 Versatile and Multi-Material Taber Abrasion Tester for Fabrics Coating Material
Product Overview

The Taber abrasion tester is designed for testing materials including plastic, paper, coatings, textiles, leather, flooring, and more. This instrument provides fast and accurate methods for research, development, and quality control, complying with multiple international standards including ASTM, ISO, NEMA, TAPPI, DIN, SAE, and JIS.

The upper part of the tester consists of a specimen bracket and a pair of weighted grinding wheels. During testing, the motor drives the specimen fixture to rotate, creating friction between the grinding wheel and the specimen. After the preset number of cycles, the test automatically stops, allowing observation of wear degree to evaluate material wear resistance.

Compliance Standards

DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ASTM-D4060, ISO-5470, ISO9352-89

Technical Specifications
Item Specification
Specimen Size Outer diameter Ø108 mm, inner diameter Ø8 mm or 3 mm (D)
Abrasive Wheel Ø2" (max. 45 mm), width 1/2 inch
Center Distance Between Wheels 53 mm
Center Distance from Wheel to Specimen 37-38 mm
Rotation Speed 60 r/min (50 Hz) or 72 r/min (60 Hz)
Load Weight 250 g, 500 g, 1000 g
Counter LED, 0-999,999 cycles, auto stop
Distance from Specimen to Vacuum Nozzle 3 mm (adjustable 2-7 mm)
Machine Dimensions (L × W × H) 330 × 430 × 310 mm
Weight 18 kg (excluding vacuum unit)
Power Supply AC 220V, 50 Hz, single phase 10A

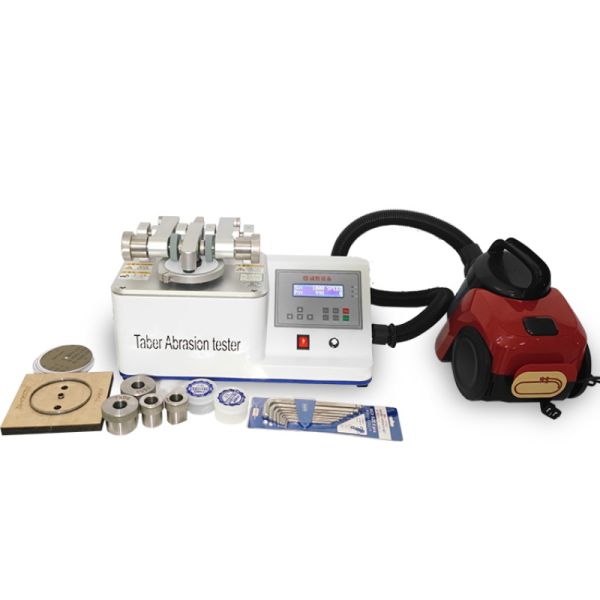

Accessories Specimen cutter, wrench, one set of abrasive wheels, one pack of sandpaper
Recommended Abrasive Wheels by Material Type
Material Type Recommended Abrasive Wheel
Coating CS10, CS17
Floor Tile CS17, H18
Plywood CS32, CS33
Plastic H18, H22, CS17
Fabric H18, H22, CS17

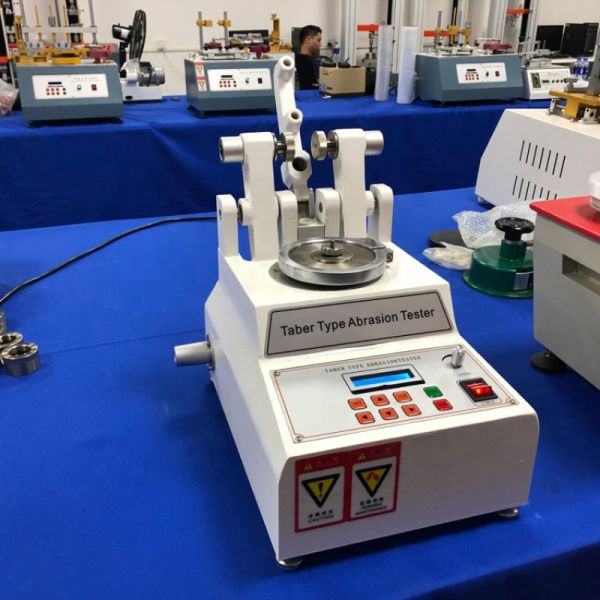

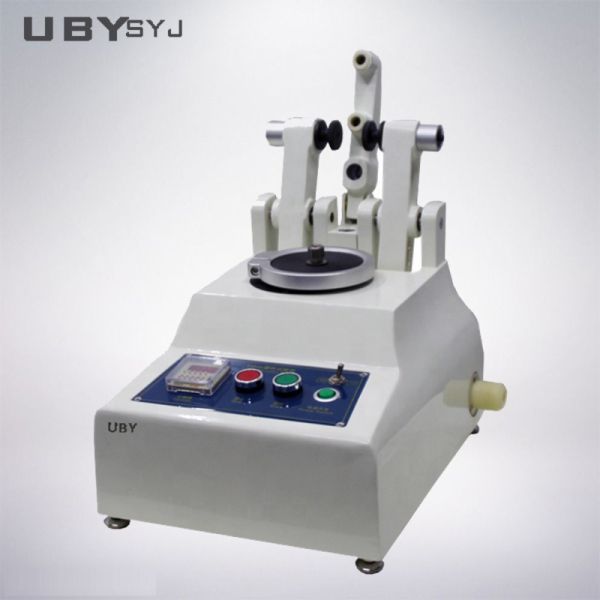

Product Images
UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards UP-1010 Versatile Multi-Material Taber Abrasion Tester Compliant with Multiple International Standards
Our Service Process

During the entire business process, we offer consultative selling services:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  • Specifications Customization Process: Create related drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
  • Production and Delivery Process: Manufacture machines according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping.
  • Installation and After-Sales Service: Provide field installation support and comprehensive after-sales services.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can make special arrangements for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and start using. If necessary, we can assist with on-site installation.
