DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester
DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester
DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester
DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Certification :
CE,ISO
Delivery Time :
5-15 work days
Payment Terms :
D/P,T/T,Western Unions,Papal,Money Gram
Supply Ability :
20 Unit/month
Model Number :
UP-1010
Packaging Details :
Professional export packaging
Name :
Abrasion Testing Machine
Model NO. :
UP-1010
Load :
250g, 500g, 1000g
Testing Disk Speed :
0-70 Adjustable
Specimen :
120 × 6.5 × 3mm
Language :
Chinese and English
Service Support :
OEM ODM
Applications :
Skin, Leather, Cloth, Paint, Paper, Flooring, Ply
Specification :
Refer to the actual size specifications
Description
UP-1010 Footwear Digital Display Taber Abrasion Testing Machine Compliant With DIN-53754
Product Overview

This tester is designed for wear-resistant testing of various materials including skin, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. The testing method involves using a standard knife to cut the specimen, followed by abrasion with regulated grinding wheel models under specified loading weights.

Technical Specifications
Specimen 120 × 6.5 × 3mm
Load 250g, 500g, 1000g
Counter 6 digit electronic display, automatic shut down
Testing Disk Speed 0-70 Adjustable
Machine Dimensions 30 × 43 × 30cm
Machine Weight 30kg
Attachment A wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 PCS
Power AC220V/50Hz
Abrasion Wheel Diameter 52.4mm
Weights 250g, 750g, 1000g
Gyration Speed 60 ~ 72+/-2rpm
Counter LCD display 0-999999
Standards DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470

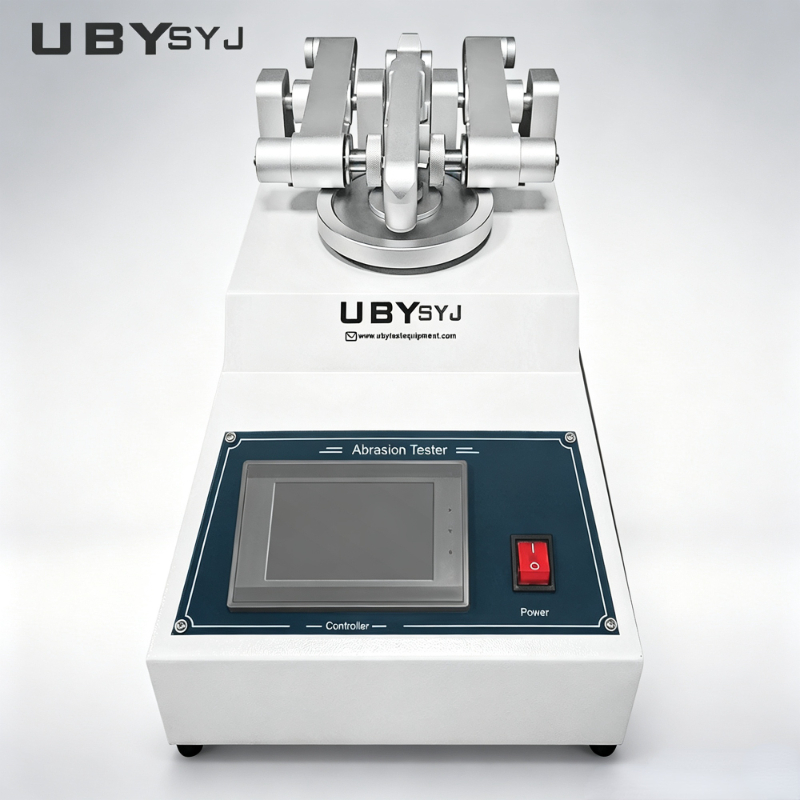

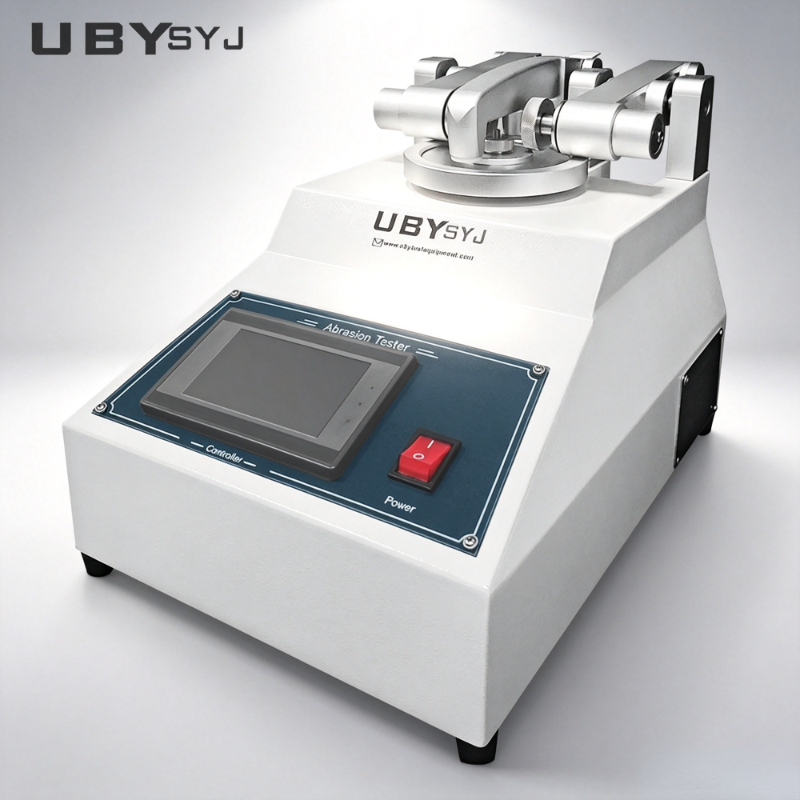

Product Images
DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester DIN-53754 Abrasion Testing Machine UP-1010 Footwear Digital Display Taber Type Abrasion Tester
Service Process
  • Customer Inquiry: Technical requirement discussion and product recommendation with competitive pricing
  • Customization: Technical drawings and reference photos provided for specification confirmation
  • Production & Delivery: Manufacturing with progress updates, calibration services, and timely shipping
  • Installation & Support: On-site installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty with extended coverage for sea transportation. Technical support is available via email or video chat with solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited shipping available for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. OEM and ODM services including logo application are available.

How can I install and use the machine?

Complete operation manuals and videos in English are provided. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.

For technical specifications, pricing, or custom requirements, please contact our engineering team for professional consultation.
