Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Specifications
MOQ :
1
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-8002
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20 Unit/Month
Delivery Time :
5-7 work days
Packaging Details :
Professional Export Packing
Model NO. :
UP-8002
Service Support :
OEM ODM
Language :
Chinese and English
MOQ :
1 PCS
Applications :
Adhesive,Tape,Plastic, Ceramic, Acrylic
Specification :
Refer to the actual size specifications
Temperature range :
RT~200ºC
emperature Displayed Accuracy :
0.1ºC
Temperature controlled Accuracy :
±0.3 ºC
Spread Accuracy :
±1%(1ºC) at- room100ºC
Description
UP-8002 Oven Type Tap Retention Tester
Compliance with Adhesive Test Standards
Product Overview
The oven type tape holding force tester simulates tape performance in high-temperature environments by measuring its resistance to displacement under constant gravity, providing reliable evaluation of adhesive durability.
Testing Standards Compliance
GB/T 4851, JIS Z0237, CNS 11888, PSTC-7, ASTM D3654
Technical Specifications
Parameter Specification
Thickness of testing panel 1.5~2.0 mm
Width 40~50 mm
Length 60~125 mm
Roller 2000 g±50 g
Temperature Range normal temperature~200ºC
Controlled Method micro computer P.I.D automatic temperature control
Temperature Displayed Accuracy 0.1ºC
Temperature controlled Accuracy ±0.3 ºC
Spread Accuracy ±1%(1ºC) at room 100ºC
Weight 1000±10g (include the weight of load panel)
Timer save time automatically, 99999.9 hours (or minute, can be set), 5 groups
Size of Machine (L×W×H) 900×550×750mm
Weight of Machine 80 kg
Power 1∮, AC220V, 50/60Hz, 12A

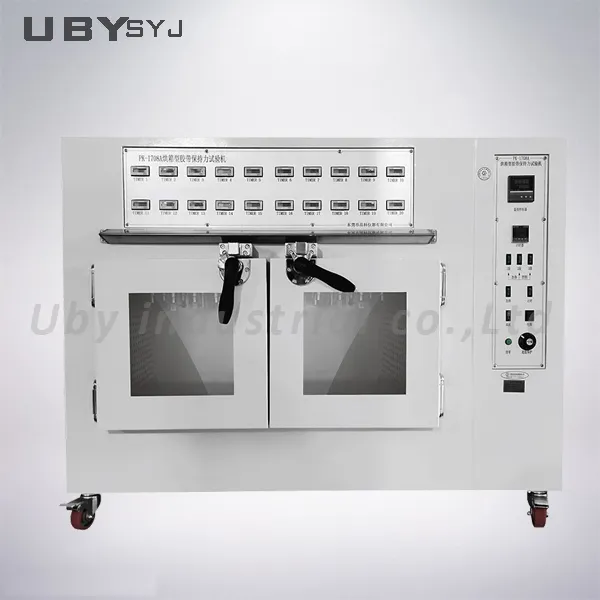

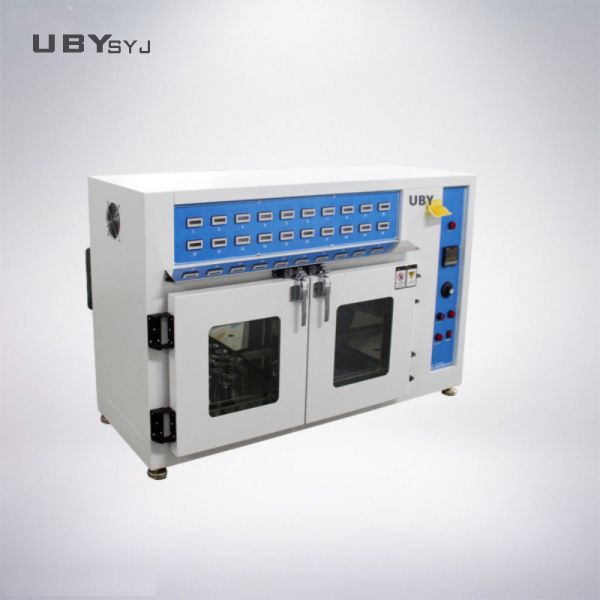

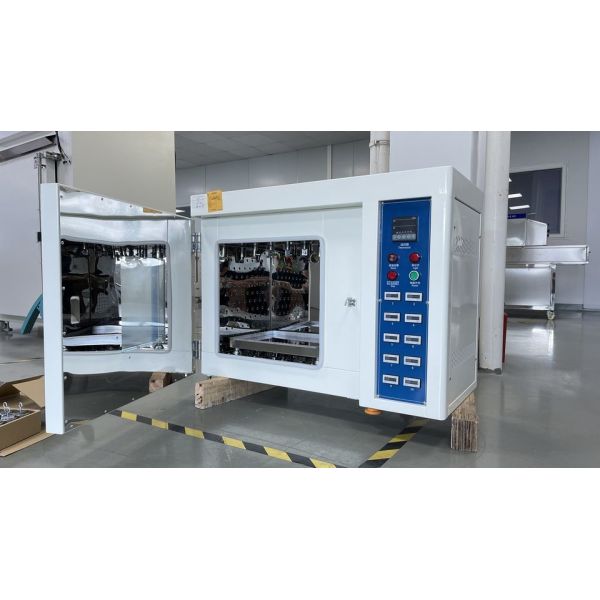

Product Images
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Oven Type Tap Retention Tester with Temperature Range RT~200ºC and Micro Computer P.I.D Control for Adhesive Testing Compliance with GB/T 4851 Standards
Our Service Commitment
Consultative Selling Services
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings and reference photos for custom requirements, confirm final solutions and pricing
  • Production and Delivery: Manufacture according to confirmed specifications, provide production updates, conduct factory or third-party calibration, and ensure timely delivery
  • Installation and Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty with free maintenance. We extend to 14 months considering sea transportation. For technical support, contact us via email or phone - we provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services including custom branding and logos.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
